RC4F
4 pole female XLR cable connector
Downloads
Technical Information
| Product | |
|---|---|
| Title | RC4F |
| Connection type | XLR |
| Gender | Female |
| Electrical | |
|---|---|
| Insulation resistance | > 1.5 GΩ |
| Contact resistance | < 5 mΩ |
| Rated Current | 10 A |
| Mechanical | |
|---|---|
| Insertion force | ≤ 40 N |
| Withdrawal force | ≤ 40 N |
| Lifetime | >1000 Mating Cycles |
| Cable O.D. | 4 - 7 mm |
| Wiresize | 1.5 mm² |
| Wiresize | 16 AWG |
| Material | |
|---|---|
| Plastic Body | PA6+30%GF UL94-HB |
| Jack | Bronze |
| Ground Contact | Steel |
| Rubber Ring | Rubber |
| Button | Zinc |
| Housing | Zinc |
| Chuck | POM |
| Push Ring | POM |
| Bushing | PA6+30%GF |
| Boot | PVC |
| Jack | Sliver Plating |
| Ground Contact | Tin and Cer |
| Button | Nickel Plating |
| Housing | Nickel Plating |
Article Variations
| Article Name | Details | Packaging |

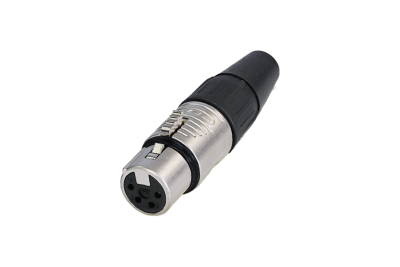

| RC4F | Nickel plated housing, Silver plated contacts | Plastic bag |
| RC4F-D | Nickel plated housing, Silver plated contacts | BULK |

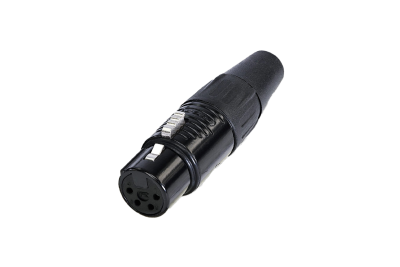

| RC4F-B | Black plated housing, gold plated contacts | Plastic bag |
| RC4F-B-D | Black plated housing, gold plated contacts | BULK |

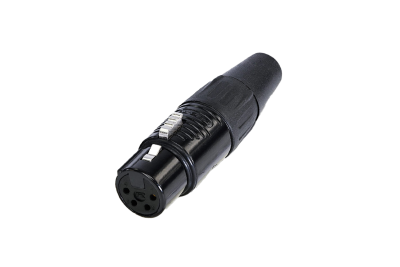

| RC4F-BAG | Black plated housing, Silver plated contacts | Plastic bag |
| RC4F-BAG-D | Black plated housing, Silver plated contacts | BULK |
