RC4M
4 pole male XLR cable connector
Downloads
Technical Information
| Product | |
|---|---|
| Title | RC4M |
| Connection type | XLR |
| Gender | Male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | > 1.5 GΩ |
| Rated Current | 10 A |
| Mechanical | |
|---|---|
| Insertion force | ≤ 40 N |
| Withdrawal force | ≤ 40 N |
| Lifetime | > 1000 mating cycles |
| Cable O.D. | 4 - 7 mm |
| Wiresize | 1.5 mm² |
| Wiresize | 16 AWG |
| Material | |
|---|---|
| Pin | Brass |
| Male Insert | PA6+30%GF UL94-HB |
| Ground Contact | Bronze |
| Housing | Zinc |
| Pin Chuck | POM |
| Push Ring | POM |
| Bushing | PA6+30%GF |
| Boot | PVC |
| Pin | Sliver Plating |
| Ground Contact | Tin and Cer |
| Housing | Nickel Plating |
Article Variations
| Article Name | Details | Packaging |

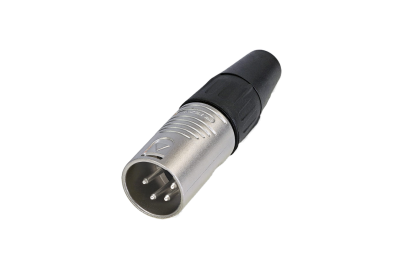

| RC4M | Nickel plated housing, Silver plated contacts | Plastic bag |
| RC4M-D | Nickel plated housing, Silver plated contacts | BULK |

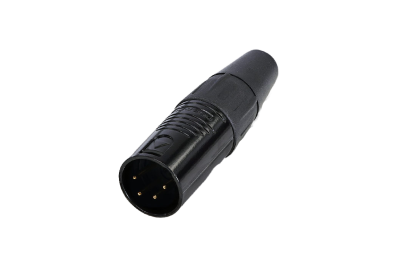

| RC4M-B | Black plated housing, gold plated contacts | Plastic bag |
| RC4M-B-D | Black plated housing, gold plated contacts | BULK |

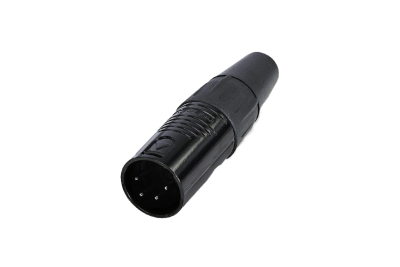

| RC4M-BAG | Black plated housing, Silver plated contacts | Plastic bag |
| RC4M-BAG-D | Black plated housing, Silver plated contacts | BULK |
