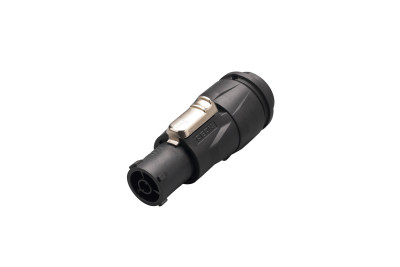

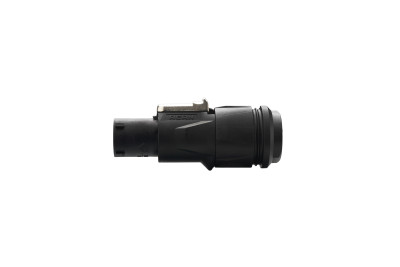

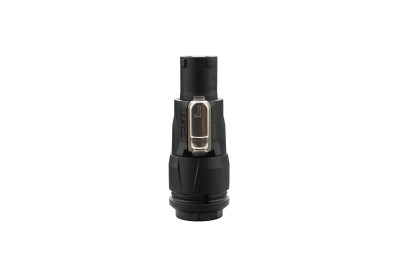

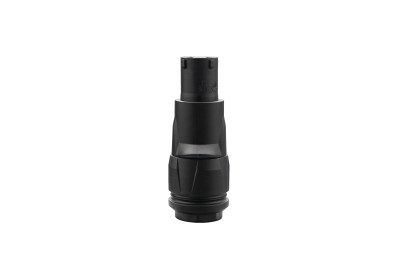

RCAC3F-X-010-L
Lockable power out female cable connector, support large cable diameter, with excellent class by using V0 flammability material, designed for outdoor applications, IP66 protection, weather resistant.
The power IP66 series are connectors with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Downloads
Technical Information
| Product | |
|---|---|
| Title | RCAC3F-X-010-L |
| Connection type | Power connector |
| Electrical | |
|---|---|
| Number of contacts | 2 + PE |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kV dc / 2.8 kV ac |
| Insulation resistance | > 0.1 GΩ |
| Rating | EN 60320-1: 16 A 250 V AC UL 60320-1: 20 A 250 V AC |
| Mechanical | |
|---|---|
| Lifetime | > 5000 mating cycles |
| Retention method | Twist lock |
| Wiring | Screw terminals |
| Cable O.D. | 10 - 12 mm |
| UL wire diameter specification | SJOOW 12 AWG |
| VDE wire diameter specification | H05VV-F 3G 2.5mm² |
| Material | |
|---|---|
| Contacts | Copper alloy |
| Housing | Polyamide |
| Insert | Polyamide |
| Contacts plating | Ag |
| Environmental | |
|---|---|
| Temperature range | UL94 V-0 |
| Flammability | -30 °C to +80 °C |
| Protection Class | IP66（mated with RRAC3M-X-010* & RRAC3MF-X-010*&RRAC3M-X-000） |
