RCAC3I-G-001

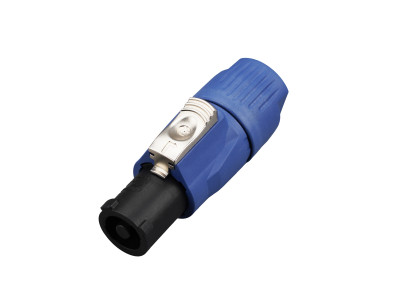

3 pole AC power inlet connector
Downloads
Drawing RCAC3I-G-001
pdf - 203.95 KB
Drawing RCAC3I-G-001
dxf - 1.38 MB
3D File RCAC3I-G-001
stp - 3.41 MB
Assembly Instruction - Power G Series
pdf - 340.37 KB
VDE Certificate - Power G Series
pdf - 330.06 KB
VDE Certificate 200A - Power G Series
pdf - 34.53 KB
UL cUL Certificate - Power G Series
pdf - 187.32 KB
Technical Information
| Product | |
|---|---|
| Title | RCAC3I-G-001 |
| Connection type | Power connector |
| Electrical | |
|---|---|
| Contact resistance | < 3 mΩ |
| Dielectric strength | 4kV AC |
| Insulation resistance | > 1GΩ (Initial) |
| Rated current per contact | 20A rms |
| Rated voltage | 250V AV |
| Mechanical | |
|---|---|
| Lifetime | 4000 mating cycles |
| Locking method | Twist lock |
| Material | |
|---|---|
| Housing | PA |
| Insert | PA |
| Contact | Bronze |
| Contact plating | Ag |
| Strain relief | PA |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Temperature range | -30 °C to +80 °C |
Article Variations
| Article Name | Details | Packaging |
| RCAC3I-G-001-0 | Blue housing, power inlet;Cable O.D 6-10mm | BULK |
| RCAC3I-G-001-1 | Blue housing, power inlet;Cable O.D 6-10mm | Single Package |
| RCAC3I-G-001-L-0 | Blue housing, power inlet;Cable O.D 10-13mm | BULK |
| RCAC3I-G-001-L-1 | Blue housing, power inlet;Cable O.D 10-13mm | Single Package |
