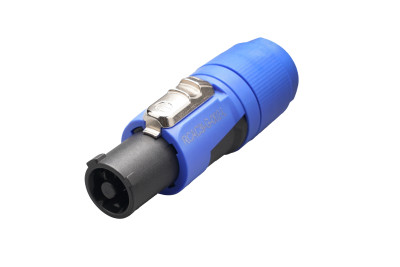

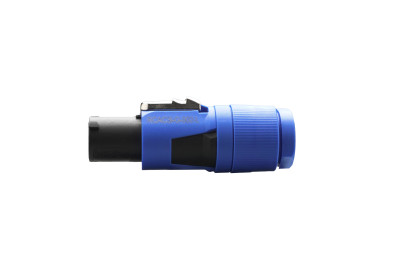

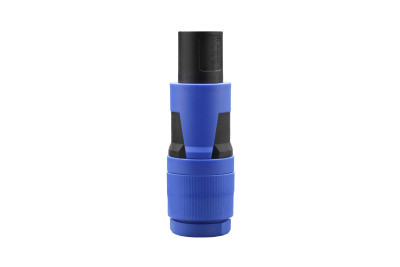

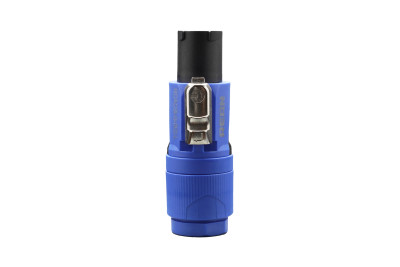

RCAC3I-G-002-L
IEC EN 60320-1 compliant main AC Power inlet single phase lockable connector with Circuit Breaking Capability when mated with REAN Power G Series receptacle.
Features & Benefits
- IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
- Strain relief for cable diameters 10 mm to 16 mm
- Easy and reliable twist lock system
Downloads
Drawing RCAC3I-G-002-L
pdf - 536.29 KB
Drawing RCAC3I-G-002-L
dxf - 2.23 MB
3D File RCAC3I-G-002-L
stp - 5.49 MB
Assembly Instruction - RCAC3I-G-002&RCAC3O-G-002 assembly instruction
pdf - 17.78 MB
VDE Certificate - RCAC3I-G-002
pdf - 323.82 KB
Certificate of Compliance (UL) - Power G
pdf - 366.6 KB
Technical Information
| Product | |
|---|---|
| Title | RCAC3I-G-002-L |
| Connection type | Power connector |
| Electrical | |
|---|---|
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | > 3 kVac (after mating cycles) |
| Insulation resistance | > 10GΩ (Initial) |
| Number of electrical contacts | 2+PE |
| Rating Europe | IEC/EN 60320-1: 16 A 250 V AC, CBC |
| Rating USA / Canada | UL 60320-1: 20 A 127 V AC cUL CSA C22.2 No. 60320-1: 20 A 127 V AC |
| Mechanical | |
|---|---|
| Cable O.D. | 10 - 16 mm |
| Lifetime | 5,000 mating cycles |
| Wiresize (mm²) | 2.5 mm² |
| Wiresize (AWG) | 14 - 12 AWG |
| Locking device | Twist lock |
| Termination | Screw type terminals |
| Material | |
|---|---|
| Contacts plating | Ag |
| Contacts | Copper alloy |
| Insert | Polyamide |
| Locking element | Zinc diecast |
| Shell | Polypropylene / TPE |
| Strain relief | Polypropylene |
| Bushing | Polypropylene / TPE |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Protection class | IP 20 |
| Flammability acc. to UL94 | v |
Article Variations
| Article Name | Details | Packaging |
| RCAC3I-G-002-L-0 | Blue housing, power inlet | BULK |
| RCAC3I-G-002-L-1 | Blue housing, power inlet | Single Package |
