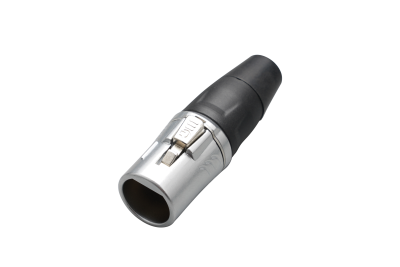

RCEM-Z-200

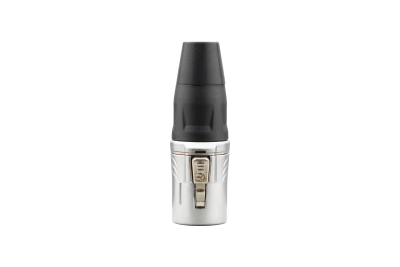

RCEM-Z-200 - Front

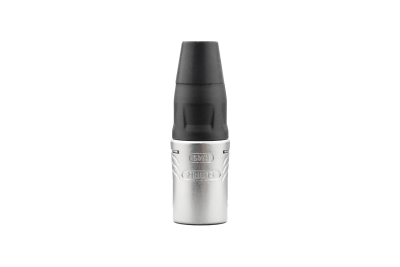

RCEM-Z-200 - Rear
1/3
rean / Outdoor / RJ45/Ethernet Connectors / Airtight plus fast connection (without latch lock) / RCEM-Z-200

RCEM-Z-200

Download Data Sheet

Ethernet connector with an internal waterproof structure, chrome-plated housing, and no RJ45 plug included by default

Features & Benefits
  • New Ethernet Chassis, meeting waterproof rating IP66
  • Supports cable outer diameter: 5–8 mm
  • Features an internal and external waterproof structure—even if the cable is bent at extream angle, water cannot enter the connector interior, ensuring more stable performance.
Downloads
Drawing RCEM-Z-200
pdf - 334.23 KB
Drawing RCEM-Z-200
dxf - 1.54 MB
3D File RCEM-Z-200
stp - 2.78 MB
Assembly Instruction - RCEM-Z-200
pdf - 261.2 KB

Technical Information

Product
Title RCEM-Z-200
Connection type Ethernet
Gender Male
Mechanical
Insertion force ≤ 80 N 
Withdrawal force ≤ 30 N
Lifetime > 1000 mating cycles 
Cable O.D. 5.0 – 8.0 mm
Locking device Latch lock
Material
Shell Zinc Alloy
Shell plating  Pearl chrome Plating
Chuck component POM
Environmental
Protection class IP66 when mating with Chassis
Temperature range  -30 °C to +80 °C
