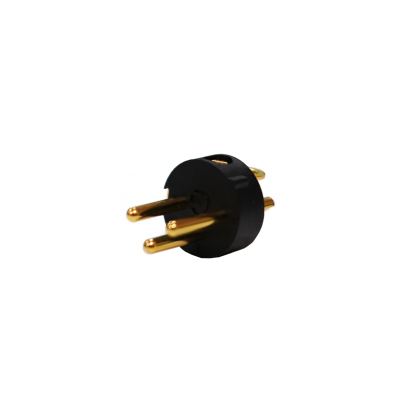

RCX3M-Comp-*
XLR male insert component, UL94 V0 flame-retardant material
Features & Benefits
- XLR male insert component
- Adopt UL94 V0 flame-retardant material
- Contacts are brass
Downloads
Technical Information
| Product | |
|---|---|
| Title | RCX3M-Comp-* |
| Connection type | XLR |
| Gender | Male |
| Electrical | |
|---|---|
| Number of contacts | 3 |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1.4 kV dc |
| Insulation resistance | > 10 GΩ |
| Rating | 16A / 50V |
| Mechanical | |
|---|---|
| Insertion force | ≤ 60 N |
| Withdrawal force | ≤ 60 N |
| Lifetime | > 1000 mating cycles |
| Material | |
|---|---|
| Contacts | Brass |
| Contact plating | RCX3M-COMP-000：Tin RCX3M-COMP-002：Gold RCX3M-COMP-003：Gold |
| Soldering contact | Brass |
| Soldering contact plating | RCX3M-COMP-000：Tin RCX3M-COMP-002：Gold RCX3M-COMP-003：Gold |
| Environmental | |
|---|---|
| Solderability | UL94 V-0 |
| Temperature range | -20 °C to +70 °C |
