RCX3M-Z-012

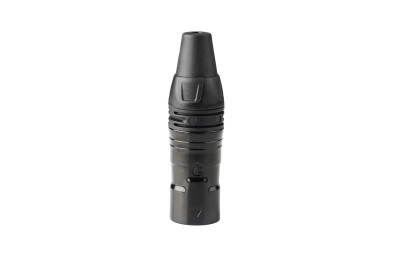

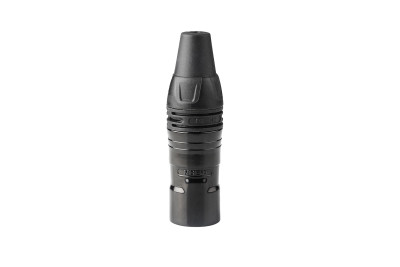

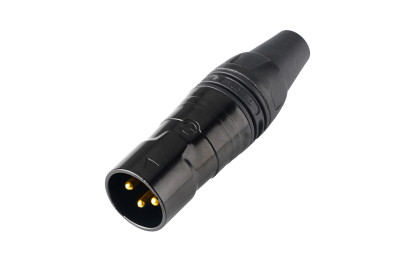

3 pole male cable connector, IP65 and internal waterproof, black plated housing, gold plated contacts
Features & Benefits
- XLR male cable connector with black plated housing and gold plated contacts
- Waterproof rating IP65
- The metal housing is designed with internal threads, to ensure it can withstand gravity under any conditions
- Cable O.D.：5-7mm
- Internal waterproof structure, the cable is bent at any Angle, water will not enter the connector inside
Downloads
Technical Information
| Product | |
|---|---|
| Title | RCX3M-Z-012 |
| Connection type | XLR |
| Gender | Male |
| Electrical | |
|---|---|
| Contact resistance | < 5 mΩ |
| Dielectric strength | 1.5 kVdc |
| Dielectric strength | > 10GΩ (Initial) |
| Rated current per contact | 16 A |
| Rated voltage | ＜ 50 V |
| Mechanical | |
|---|---|
| Insertion force | ≤ 60 N |
| Withdrawal force | ≤ 60 N |
| Lifetime | > 1000 mating cycles |
| Cable O.D. | 5.0 - 7.0 mm |
| Material | |
|---|---|
| Contact | Brass |
| Contact plating | Gold |
| Contact ground | Bronze |
| Contact ground plating | Tin |
| Shell | Zinc Alloy |
| shell plating | Black |
| Chuck | PA |
| Boot | PA+TPU |
| Environmental | |
|---|---|
| Solderability | Complies with IEC 68-2-20 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP65 |
| Temperature range | -30 °C to +80 °C |
Article Variations
| Article Name | Details | Packaging |
| RCX3M-Z-012-0 | Black plated housing, gold plated contacts | BULK |
| RCX3M-Z-012-1 | Black plated housing, gold plated contacts | Plastic Bag |
