RRAC3M-X-010

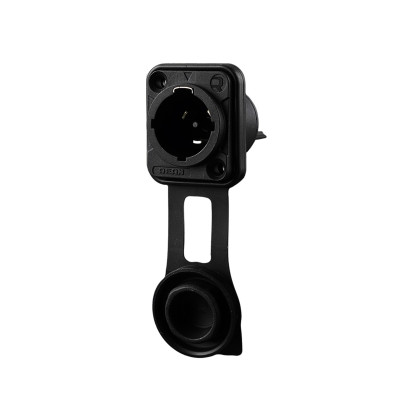

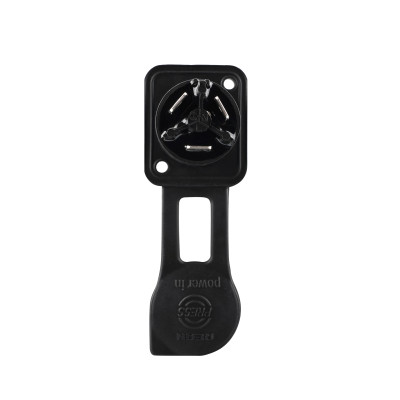

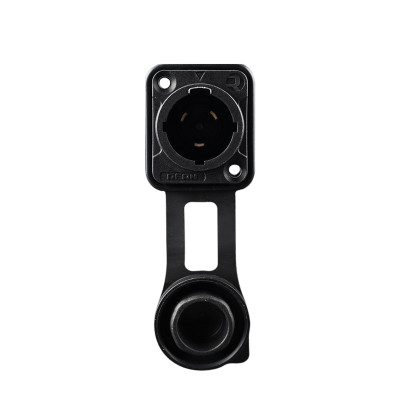

Lockable power Male chassis connector, with excellent flammability class by using V0 materials.
Designed for outdoor applications, IP65 protection and Airtight proof
The power X series are connectors with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits

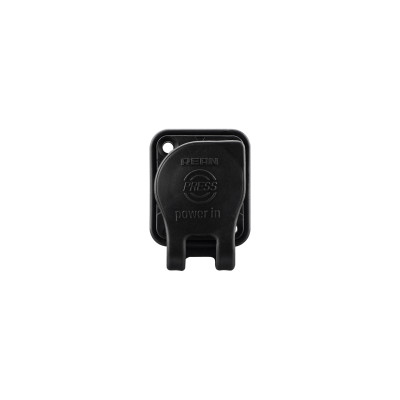

- IP65 protection by closing the cap or mating with RCAC3F-X-000
- Airtight protection
- Mains connector with breaking capacity (CBC)
- IEC/EN60320-1 compliant VDE certification
- UL60320-1 compliant UL certification
- IP67 protection to prevent water intrusion into the device interior
Downloads
Technical Information
| Product | |
|---|---|
| Title | RRAC3M-X-010 |
| Connection type | Power |
| Electrical | |
|---|---|
| Number of contacts | 2 + PE |
| Contact resistance | ≤ 2 mΩ |
| Dielectric strength | 4 kV dc / 2.8 kV ac |
| Insulation resistance (after dampheat) | > 1 GΩ |
| Rating Europe | EN 60320-1: 16 A 250 V AC |
| Rating USA | UL 60320-1: 20 A 250 V AC |
| Mechanical | |
|---|---|
| Retention method | Twist lock |
| Lifetime | > 5000 mating cycles |
| Wiring | Flat tabs 6.35 x 0.8 mm |
| Material | |
|---|---|
| Shell | Polyamide |
| Contacts | Copper alloy |
| Contact plating | Ag |
| Locking element | Stainless steel |
| Environmental | |
|---|---|
| Flammability | UL94 V-0 |
| Protection class | IP65 and Airtight |
| Temperature range | -30 °C to +80 °C |
