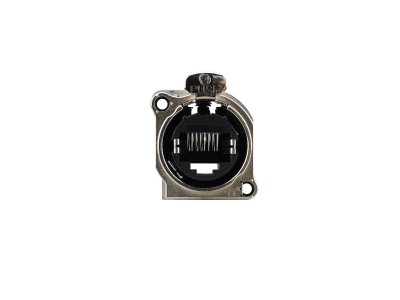

RRE8F-B-001-Front

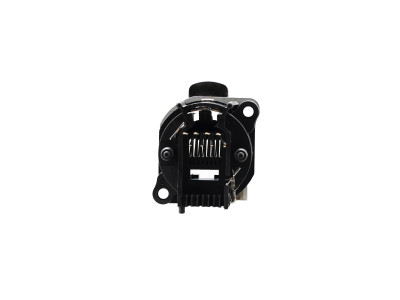

RRE8F-B-001-Rear
1/3
rean / Indoor / RJ45 / A/B Series - Receptacles / RRE8F-B-001

RRE8F-B-001

Download Data Sheet

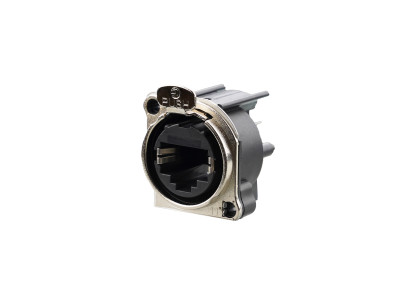

Vertical PCB mount RJ45 receptacle, B-Series cutout with latch lock

Features & Benefits
  • Cost effective Ethernet  Chassis solution
  • CAT5E  performance
  • Industrial standard A type panel cut-out & PCB mounting
Downloads
Drawing RRE8F-B-001
pdf - 116.21 KB
Drawing RRE8F-B-001
dxf - 2.1 MB
3D File RRE8F-B-001
stp - 1.25 MB

Technical Information

Product
Title RRE8F-B-001
Connection type Ethernet
Gender Female
Electrical
Contact resistance <50 mΩ
Dielectric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage ≤ 57 V
Transmission performance CAT5e
Mechanical
Insertion force ≤ 40 N
Withdrawal force ≤ 40 N
Lifetime > 1000 mating cycles 
Wiring Vertical PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape B
Mounting A-Screw
Material
Contacts Au
Locking element Bronze
Shell Plastic
Flange Metal
Environmental
Solderability Complies with IEC 68-2-20
Temperature range  -30 °C to +80 °C
