RRX3F-B-022

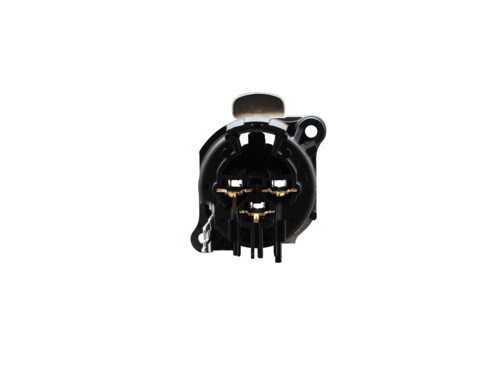

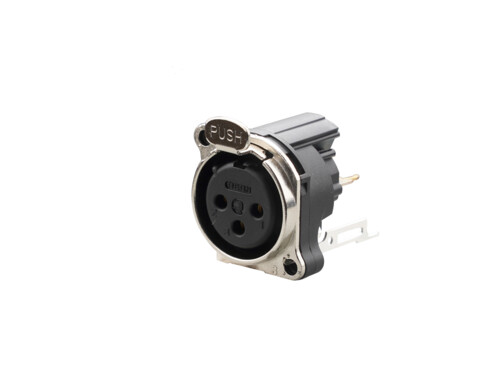

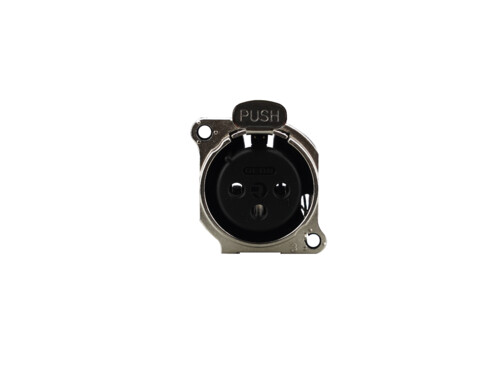

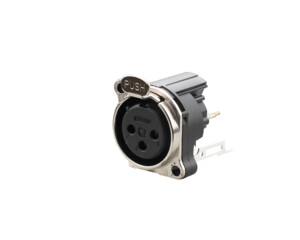

3 pole female XLR receptacle, grounding: separate ground contact to mating connector shell and front panel, vertical PCB mount
Features & Benefits
- Cost effective XLR Chassis solution
- Gold plated contacts
- Metal mounting flange providing EMC and RF protection
- Industrial standard A type panel cut-out & PCB mounting
Downloads
Technical Information
| Product | |
|---|---|
| Title | RRX3F-B-022 |
| Connection type | XLR |
| Gender | Female |
| Electrical | |
|---|---|
| Contact resistance | ≤10 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10GΩ (Initial) |
| Rated voltage | < 50 V |
| Grounding Options | Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1 |
| Mechanical | |
|---|---|
| Insertion force | ≤ 40 N |
| Withdrawal force | ≤ 40 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Vertical PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Chassis shape | B |
| Mounting | B-Screw |
| Material | |
|---|---|
| Contacts | Bronze |
| Locking element | Steel |
| Shell | PA |
| Flange | Metal |
| Environmental | |
|---|---|
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
| Flammability | UL 94 HB |
