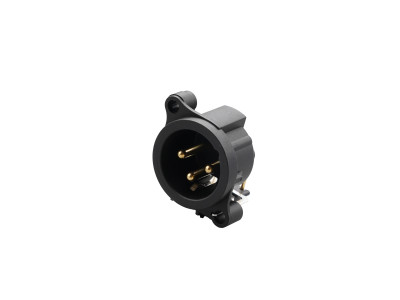

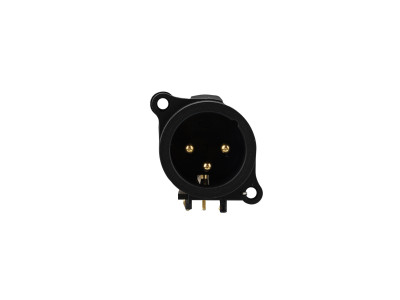

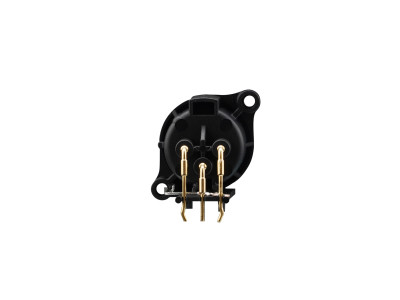

RRX3M-AA-011
3 pole male XLR receptacle, grounding: mating connector shell to pin1 and front panel, horizontal PCB mount
Features & Benefits
- Cost effective XLR Chassis solution
- Gold plated contacts
- Industrial standard A type panel cut-out & PCB mounting
Downloads
Technical Information
| Product | |
|---|---|
| Title | RRX3M-AA-011 |
| Connection type | XLR |
| Gender | Male |
| Electrical | |
|---|---|
| Contact resistance | ≤10 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 10GΩ (Initial) |
| Rated voltage | < 50 V |
| Grounding Options | Pin 1 connected direct to front panel and connector shell, no separate ground contact |
| Mechanical | |
|---|---|
| Insertion force | ≤ 40 N |
| Withdrawal force | ≤ 40 N |
| Lifetime | > 1000 mating cycles |
| Wiring | Horizontal PCB mount |
| Locking device | Latch lock |
| Mounting direction | Rear mounting |
| Chassis shape | A |
| Mounting | A-Screw |
| Material | |
|---|---|
| Contacts | Bronze |
| Locking element | Steel |
| Shell | PA |
| Environmental | |
|---|---|
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
| Flammability | UL 94 HB |
