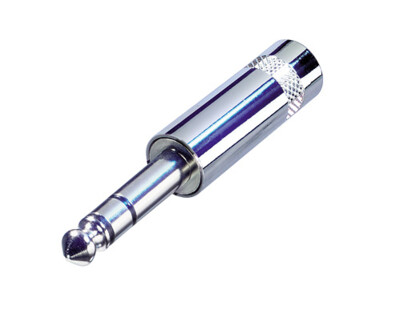

NYS202

NYS202

3 pole 1/4'' plug, short metal handle

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing NYS202
  • Drawing NYS202
  • REAN Product Guide
  • RoHs certificate

Technical Information

Product
Title NYS202
Connection Type Plug
Gender male
Electrical
Dielectric strength 0.5 kVdc
Insulation resistance ≥ 1 GΩ
Contact resistance depends on mating connector
Rated current depends on mating connector
Mechanical
Cable O.D. ≤ 6 mm
Lifetime 1000 mating cycles
Wiresize
Wiresize 24 AWG
Material
Contact plating 2 µm Ni
Contacts Brass (CuZn39Pb3)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Insulation Thermoplastic
Strain relief Crimp type SnCe plated
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +70 °C
