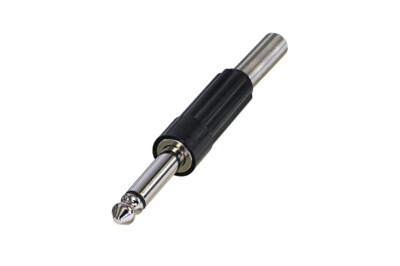

NYS203
mono 2 pole, plastic handle with flexible anti-kink protection
Technical Information
| Product | |
|---|---|
| Title | NYS203 |
| Connection Type | Plugs |
| Electrical | |
|---|---|
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥2,000 MΩ(Initial) |
| Dielectric Strength | 0.5 KVdc 50HZ |
| Mechanical | |
|---|---|
| Insertion and Withdrawal Force | ≤60N |
| Lifetime | >1,000 Mating Cycles |
| Material | |
|---|---|
| Tip | Brass |
| Bushing | PA66+30%GF |
| Inner | Steel |
| Insulation | PVC |
| Sleeve | Brass |
| Sleeve | Brass |
| Insulation | PA66+30%GF |
| Cable Clamp | Steel |
| Housing | ABS |
| Spring | Steel |
| Tip | Nickel Plating |
| Sleeve | Nickel Plating |
| Sleeve | Nickel Plating |
| Spring | Nickel Plating |
| Inner | Zinc Plating |
| Cable Clamp | Tin and Cer |
Article Variations
| Article Name | Details | Packaging |
| NYS203 | black handle |
