rean / Indoor / 1/4" Plugs & Jacks / Jack / NYS Series 1/4" Horizontal Jacks / NYS212

NYS212

Download Data Sheet

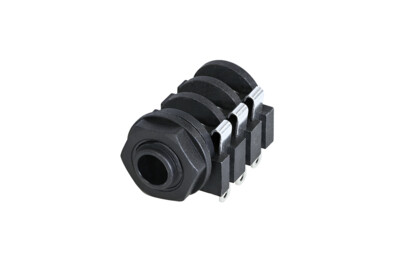

1/4" horizontal jack, plastic housing with washer and nut, solder taps, with normalling contacts

Downloads
Drawing NYS212
pdf - 50.56 KB
Drawing NYS212
dxf - 2.52 MB
3D File NYS212
stp - 74.54 KB
Drawing NYS2122
pdf - 50.16 KB
Drawing NYS2122
dxf - 2.6 MB
3D File NYS2122
stp - 63.37 KB
Article Variations
Article Name Details Packaging
NYS212 Stereo 3 pole
NYS2122 Mono 2 pole
