rean > Indoor > 1/4" Plugs & Jacks > Jack > NYS Series 1/4" Horizontal Jacks > NYS215

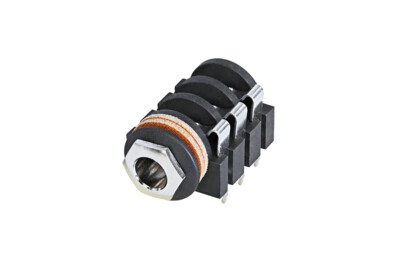

NYS215

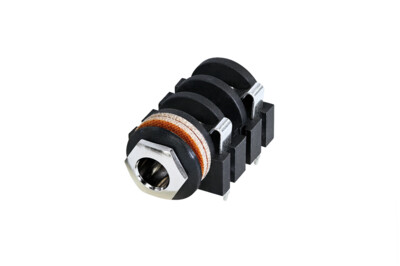

NYS2152

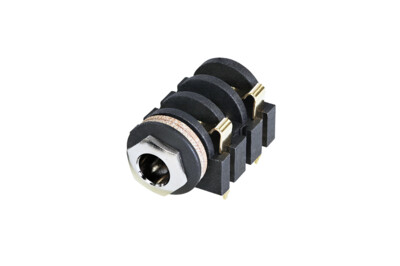

NYS2152G
NYS215
NYS2152
NYS2152G

NYS215

3 pole horizontal 1/4'' jack, all contacts switched, chrome ferrule nut

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing NYS215
  • Drawing NYS215
  • RoHs certificate

Article Variations

Article Name Details Packaging
NYS215 Stereo 3 pole, 8.2 mm distance to PCB BULK
NYS2152 Mono 2 pole, 8.2 mm distance to PCB BULK
NYS2152G Mono 2 pole, gold contacts, 8.2 mm distance to PCB BULK
NYS2152G-DI-U Mono 2 pole, gold contacts, chrome ferrule nut, solder tap version BULK

Technical Information

Product
Title NYS215
Connection Type Jack
Gender female
Electrical
Dielectric strength 0.5 kVdc
Insulation resistance ≥ 1 GΩ
Rated current depends on mated connector
Contact resistance depends on mated connector
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≥ 10 N
Lifetime 1000 mating cycles
Wiresize
Material
Contact plating SnCe
Contacts Brass (CuZn39Pb3)
Shell / Insulation Thermoplastic
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +70 °C
