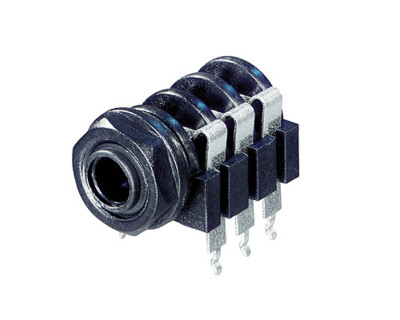

NYS219
3 pole horizontal 1/4'' jack, all contacts switched, long contacts
Technical Information
| Product | |
|---|---|
| Title | NYS219 |
| Connection Type | Jack |
| Gender | female |
| Electrical | |
|---|---|
| Dielectric strength | 0.5 kVdc |
| Insulation resistance | ≥ 1 GΩ |
| Rated current | depends on mated connector |
| Contact resistance | depends on mated connector |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≥ 10 N |
| Lifetime | 1000 mating cycles |
| Wiresize | |
| Material | |
|---|---|
| Contact plating | SnCe |
| Contacts | Brass (CuZn39Pb3) |
| Shell / Insulation | Thermoplastic |
| Environmental | |
|---|---|
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +70 °C |
Article Variations
| Article Name | Details | Packaging |
| NYS219 | 3 pole horizontal 1/4'' jack, all contacts switched | BULK |
| NYS2192 | 2 pole horizontal 1/4'' jack, all contacts switched | BULK |
