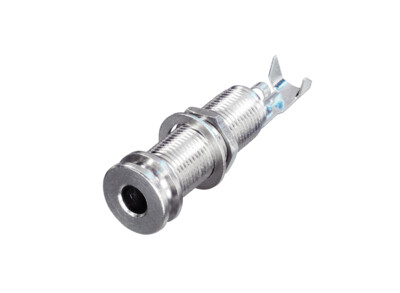

NYS221
1/4" jack, long-threaded bushing with washer and nut, full metal
Downloads
Technical Information
| Product | |
|---|---|
| Title | NYS221 |
| Connection Type | Jack |
| Electrical | |
|---|---|
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | >2,000 MΩ(Initial) |
| Dielectric strength | 0.5KV dc 50HZ |
| Mechanical | |
|---|---|
| Insertion and Withdrawal Force | 5-40N |
| Lifetime | >5,000 Mating Cycles |
| Material | |
|---|---|
| Jack Housing | Brass |
| Washer | Steel |
| Nut | Brass |
| Ground Contact | Bronze |
| Plastc Body | PP |
| Contact | Bronze |
| Washer | Epoxy-phenolic |
| Contact | Bronze |
| Cable Clamp | Brass |
| Jack Housing | Nickel Plating |
| Washer | Nickel Plating |
| Nut | Nickel Plating |
| Ground Contact | Nickel Plating |
| Contact | Tin and Cer |
| Cable Clamp | Tin and Cer |
Article Variations
| Article Name | Details | Packaging |
| NYS221 | Stereo 3 pole, special designed head for quitar stramp |
