NYS228
stereo 3 pole, long diecast handle
Downloads
Technical Information
| Product | |
|---|---|
| Title | NYS228 |
| Connection Type | 1/4" Plugs & Jacks |
| Electrical | |
|---|---|
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >200 MΩ(Initial) |
| Dielectric Strength | 500 V dc 50HZ |
| Mechanical | |
|---|---|
| Insertion and Withdrawal Force | 5-40N |
| Lifetime | >5,000 Mating Cycles |
| Material | |
|---|---|
| Tip | Brass |
| Bushing | PA66+30%GF |
| Insert | Brass |
| Sleeve | Brass |
| Insulation | PVC |
| Threaded Nut | Brass |
| Insulator | PA66+30%GF |
| Housing | Zinc |
| Soldering Contact | Brass |
| Cable Clamp | Steel |
| Tip | Nickel Plating |
| Insert | Nickel Plating |
| Sleeve | Nickel Plating |
| Threaded Nut | Nickel Plating |
| Housing | Nickel Plating |
| Soldering Contact | Tin and Cer |
| Cable Clamp | Tin and Cer |
Article Variations
| Article Name | Details | Packaging |

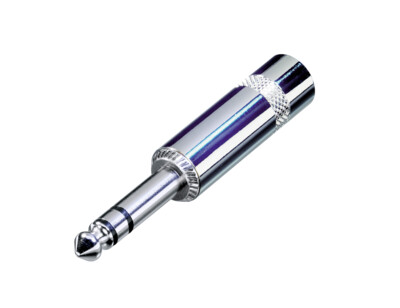

| NYS228 | silvery handle | |

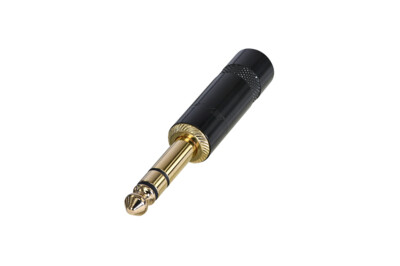

| NYS228BG | black handle, gold plated contacts | |

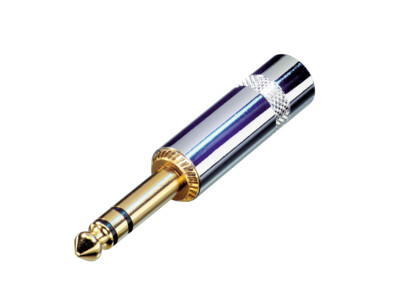

| NYS228G | silvery handle, gold plated contacts | |

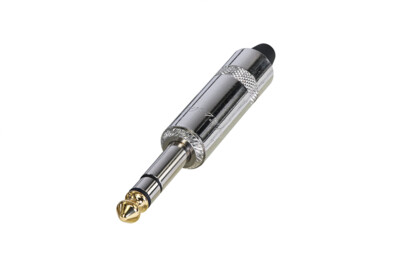

| NYS228GT | silvery handle, gold plated tip contacts |
