NYS230

NYS230

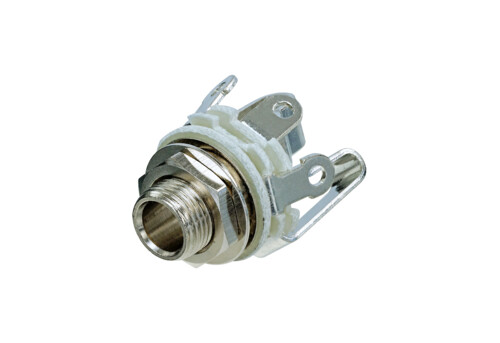

1/4" open jack, stereo 3 pole, with washer and nut, with 0.205" faston tabs

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing NYS230
  • Drawing NYS230

Article Variations

Article Name Details Packaging
NYS230 for up to 3.5 mm panel thickness

Technical Information

Product
Title NYS230
Connection Type Jack
Electrical
Contact Resistance ≤10 mΩ
Insulation Resistance >2000MΩ(Initial)
Dielectric Strength 500V dc 50HZ
Mechanical
Insertion and Withdrawal Force 5-40N
Lifetime >5000 Mating Cycles
Material
Tube Brass
Nut Brass
Washer Steel
Washer Steel
Washer 3240 Epoxy-phenolic
Insulator Washer 3240 Epoxy-phenolic
Contact Bronze
Sleeve Contact Brass
Contact Bronze
Tube Nickel Plating
Nut Nickel Plating
Washer Nickel Plating
Washer Nickel Plating
Contact Tin and Cer
Sleeve Contact Tin and Cer
Contact Tin and Cer
