NYS231

Stereo 3 pole 3.5 mm plug, crimp strain relief

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing NYS231
  • Drawing NYS231
  • 3D File NYS231
  • 3D File NYS231L
  • 3D File NYS231LL
  • Assembly Instruction-3.5mm plugs NYS series

Article Variations

Article Name Details Packaging
NYS231 metal handle Plastic Bag
NYS231B black plated metal handle Plastic Bag
NYS231BG black plated metal handle, gold plated contacts Plastic Bag
NYS231G metal handle, gold plated contacts Plastic Bag

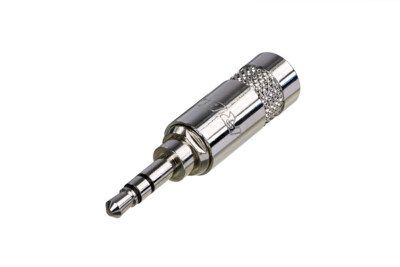

NYS231L metal handle, large cable outlet Plastic Bag

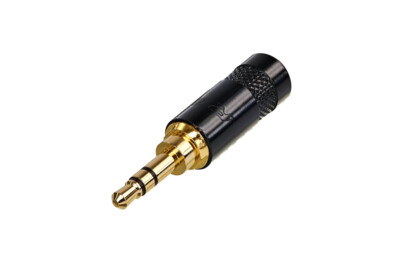

NYS231LBG black plated metal handle, gold plated contacts, large cable outlet Plastic Bag

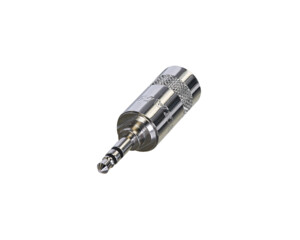

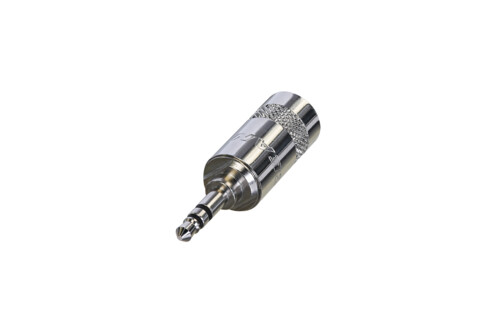

NYS231LL metal handle, x-large cable outlet Plastic Bag
NYS231BG-LL black plated metal handle, gold plated contacts, x-large cable outlet Plastic Bag



Technical Information

Product
Title NYS231
Connection Type Plug
Electrical
Contact Resistance ≤ 10 mΩ
Insulation Resistance ≥ 200 MΩ(Initial)
Dielectric Strength 0.5 KVdc 50HZ
Mechanical
Lifetime > 5,000 Mating Cycles
Insertion and Withdrawal Force 5 - 40 N
Cable O.D. max 4.5 mm for standard outlet
max 6.4 mm for large outlet ( * L)
max 8.5 mm for large outlet ( * LL)
Material
Plug finger Brass
Sleeve Zinc
Retainer ring PA66+30%GF
Soldering Contact Phosphor Bronze
Cable Clamp Steel
Insulation PP
Housing Zinc
Plug finger plating Nickel
Sleeve plating Nickel
Soldering Contact plating Tin
Cable Clamp plating Tin
Housing plating Nickel
