NYS236 NYS237 NYS238 NYS239
NYS236
NYS237
NYS238
NYS239
1/4
rean / Indoor / 1/4" Plugs & Jacks / Plug & Jack Adapters / NYS236

NYS236

Download Data Sheet

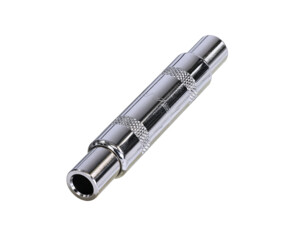

mono 2 pole 1/4" jack to jack adapter

Downloads
NYS236
pdf - 61.85 KB
NYS236
dxf - 1.29 MB
NYS237(LINE)
pdf - 71.24 KB
NYS237(LINE)
dxf - 1.37 MB
NYS238
pdf - 201.33 KB
NYS238
dxf - 1.34 MB
NYS239
pdf - 74.33 KB
NYS239
dxf - 1.52 MB

Technical Information

Product
Title NYS236
Connection Type
Electrical
Contact resistance ≤10mΩ
Insulation resistance ≥2000MΩ
Dielectric strength 50Hz 500VAC
Mechanical
Insertion and Withdrawal force 2-35N
Lifetime >1000mating cycles
Material
Fixed Sleeve ABS
Housing Brass
Sleeve Nose Brass
Contact Bronze
Contact/Soldering Contact Tinned and Cerium
Article Variations
Article Name Details Packaging
NYS236 mono 2 pole 1/4" jack to jack adapter  Single Packaging

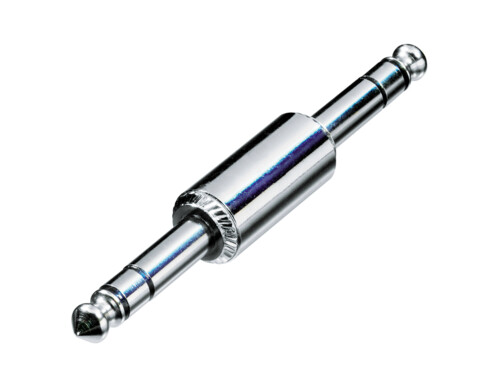

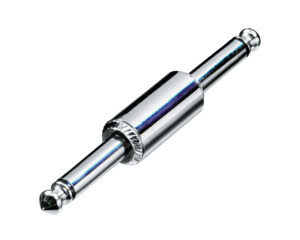

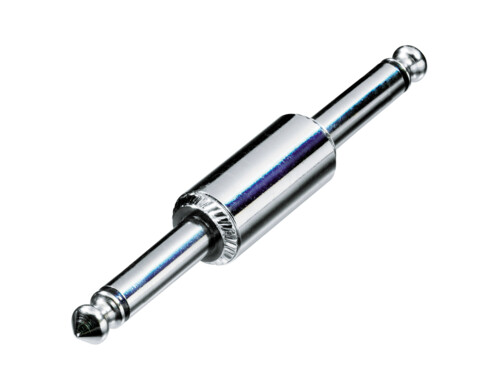

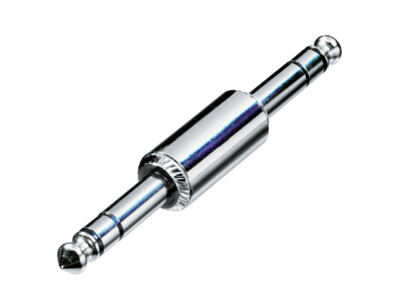

NYS237 mono 2 pole 1/4" plug to plug adapter , full metal Single Packaging

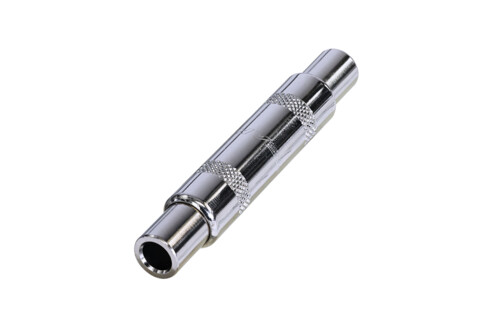

NYS238 mono 3 pole 1/4" jack to jack adapter  Single Packaging
NYS239 mono 3 pole 1/4" plug to plug adapter , full metal Single Packaging
