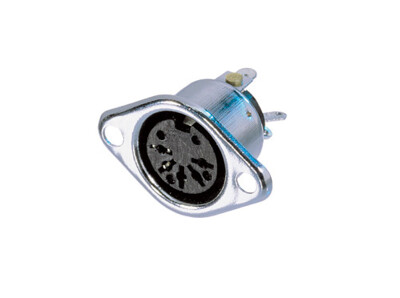

NYS324
3 pole DIN chassis connector, silver plated contacts
Downloads
Technical Information
| Product | |
|---|---|
| Title | NYS324 |
| Electrical | |
|---|---|
| Contact Resistance | <10 mΩ |
| Insulation Resistance | >1000 MΩ(Initial) |
| Dielectric Strength | 500V dc |
| Rated Voltage | 50 VAC |
| Mechanical | |
|---|---|
| Insertion Force | ≤24N |
| Withdrawal Force | >3N |
| Lifetime | >1000 Mating Cycles |
| Material | |
|---|---|
| Housing | Aluminum |
| Shield | Bronze |
| Rivet | Brass |
| 3 Pin Insulator | PA6+30%GF |
| Jack | Bronze |
| Housing | Nickel Plating |
| Shield | Silver Plating |
| Jack | Silver Plating |
Article Variations
| Article Name | Details | Packaging |
| NYS324 |
