rean > Indoor > Phono (RCA/Cinch) > NYS Series > NYS352
NYS352
NYS352AG
NYS352B
NYS352BG
NYS352G
NYS352
NYS352AG
NYS352B
NYS352BG
NYS352G

NYS352

Heavy duty phono plug, cable clamp

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing NYS352
  • Drawing NYS352
  • 3D File NYS352

Article Variations

Article Name Details Packaging
NYS352 Nickel plated shell and contacts

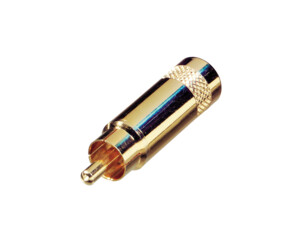

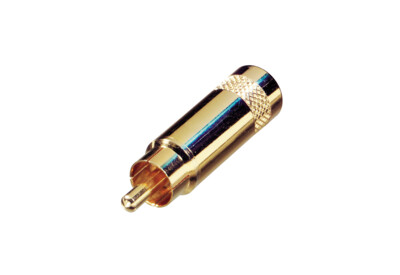

NYS352AG Gold plated shell and contacts

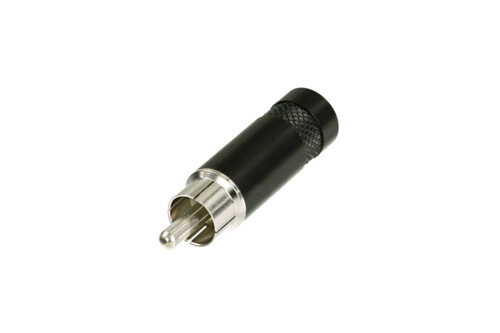

NYS352B Black plated shell, nickel plated contacts

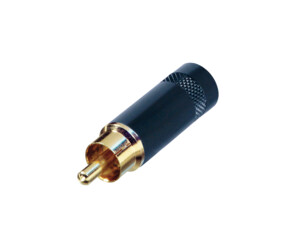

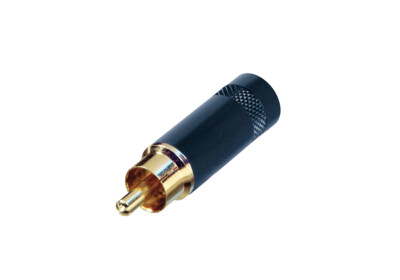

NYS352BG Black plated shell, gold plated contacts

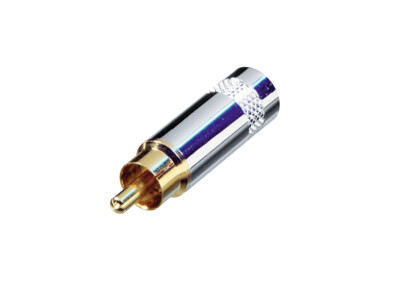

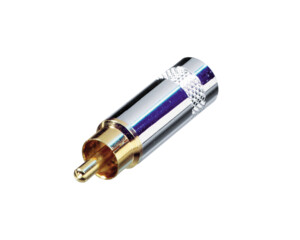

NYS352G Nickel plated shell, gold plated contacts



Technical Information

Product
Title NYS352
Connection Type Plug
Electrical
Contact resistance ≤10mΩ
Insulation resistance ≥2,000MΩ
Dielectric strength 50Hz 0.5KVdc
Mechanical
Insertion and Withdrawal force 5-20N
Lifetime >5,000 mating cycles
Material
Pin Brass
Housing Brass
Housing Zinc
Insulation PP
Cable Clamp Steel
Pin Tin and Cer
Cable Clamp Tin and Cer
Housing Nickel Plating
Housing Nickel Plating
