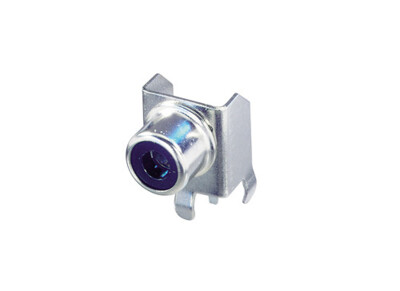

NYS354
Phono jack, PCB-mount, max. panel thickness 1.2 mm
Downloads
Technical Information
| Product | |
|---|---|
| Title | NYS354 |
| Electrical | |
|---|---|
| Dielectric strength | 0.5 kVdc |
| Insulation resistance | ≥ 1 GΩ |
| Rated current | depends on mated connector |
| Contact resistance | depends on mated connector |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Panel thickness | 1.2 mm |
| Wiresize | |
| Material | |
|---|---|
| Contact plating | Nickel |
| Contacts | Brass (CuZn39Pb3) |
| Shell | Brass (CuZn39Pb3) |
| Shell plating | Nickel |
| Insulation | PC |
| Environmental | |
|---|---|
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -25 °C to +70 °C |
