rean > Indoor > Phono (RCA/Cinch) > NYS Series > NYS355

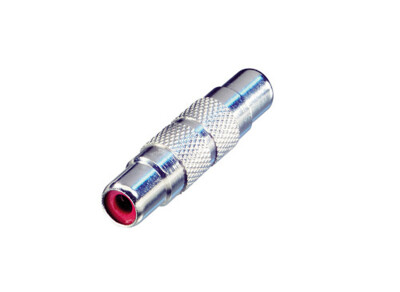

NYS355

NYS355

Phono jack to jack adapter

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing NYS355
  • Drawing NYS355

Article Variations

Article Name Details Packaging
NYS355



Technical Information

Product
Title NYS355
Connection Type Jack
Electrical
Contact Resistance ≤10 mΩ
Insulation Resistance >2000 MΩ(Initial)
Rated Voltage 0.5 VAC
Mechanical
Insertion and Withdrawal Force 5-20N
Lifetime >5000 Mating Cycles
Material
Housing Brass
Jack Brozen
Wire Brass
Insulating tube PVC
Bushing PC
Washer ABS
Housing Nickel plating
Jack Snce6 plating
