NYS367
Phono jack, gold plated contacts
Downloads
Technical Information
| Product | |
|---|---|
| Title | NYS367 |
| Connection Type | Phono ("RCA/Cinch") |
| Electrical | |
|---|---|
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >2000 MΩ(Initial) |
| Rated Voltage | 0.5 VAC |
| Mechanical | |
|---|---|
| Insertion and Withdrawal Force | 5-20N |
| Lifetime | >5000 Mating Cycles |
| Material | |
|---|---|
| Housing | Brass |
| Nut | Brass |
| Washer | PA+30%GF |
| Lug | Brass |
| Washer | PA+30%GF |
| Pin | Brass |
| Housing | Gold |
| Nut | Gold |
| Lug | Gold |
| Pin | Gold |
Article Variations
| Article Name | Details | Packaging |

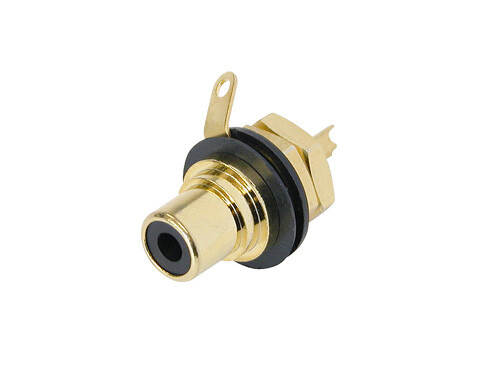

| NYS367-0 | Black color coding | |

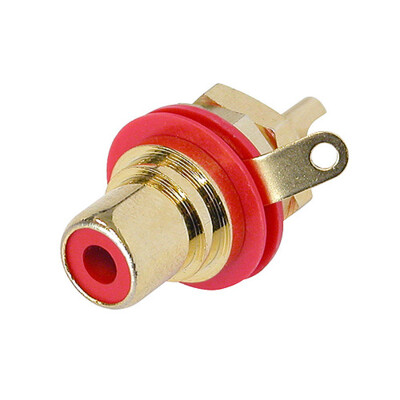

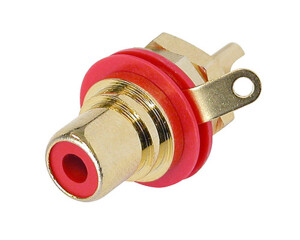

| NYS367-2 | Red color coding | |

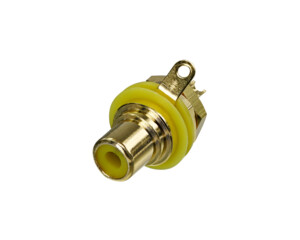

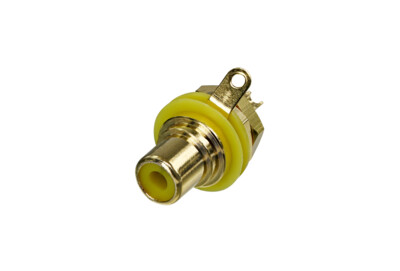

| NYS367-4 | Yellow color coding | |

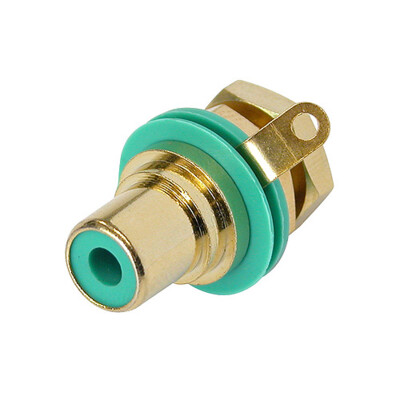

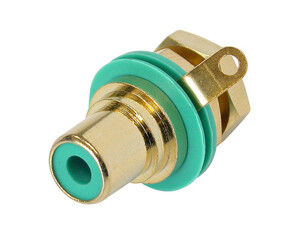

| NYS367-5 | Green color coding | |
| NYS367-6 | Blue color coding | |

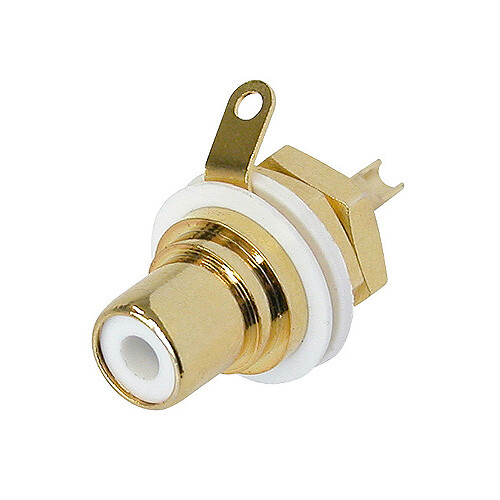

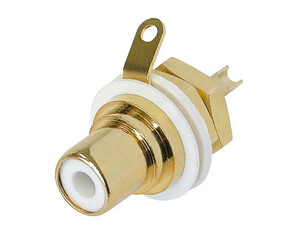

| NYS367-9 | White color coding |
