NYS372P-BAG

NYS372P-BG

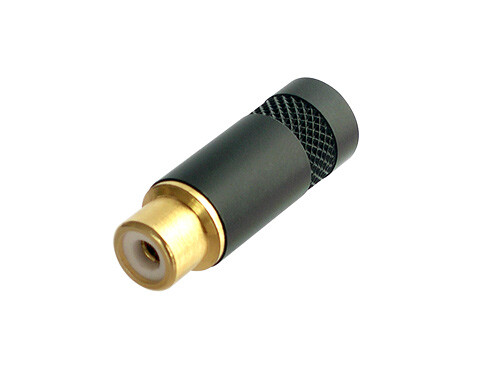

Phono cable jack, gold plated contacts, black plated shell

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing NYS372P
  • REAN Product Guide
  • RoHs certificate

Technical Information

Product
Title NYS372P-BG
Electrical
Dielectric strength 0.5 kVdc
Insulation resistance ≥ 1 GΩ
Rated current depends on mated connector
Contact resistance depends on mated connector
Mechanical
Cable O.D. 7.2 mm
Lifetime > 1000 mating cycles
Wiresize
Wiresize 26 AWG
Material
Contact plating Au
Contacts Brass (CuZn39Pb3)
Shell Brass (CuZn39Pb3)
Shell plating Black
Strain relief SnCe plated, crimp type
Insulation ABS
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -25 °C to +70 °C
