NYS508
Dual Banana Plug, for cable O.D. 6.0 - 10.5 mm, gold plated contacts
Downloads
Technical Information
| Product | |
|---|---|
| Title | NYS508 |
| Connection Type | Dual banana plug |
| Electrical | |
|---|---|
| Contact Resistance | <10 mΩ |
| Insulation Resistance | >1000 MΩ(Initial) |
| Dielectric Strength | 500V dc |
| Rated Voltage | 50 VAC |
| Mechanical | |
|---|---|
| Insertion Force | ≤56N |
| Withdrawal Force | >7.5N |
| Lifetime | >1000 Mating Cycles |
| Material | |
|---|---|
| Front- plug assembly | Brass |
| Retainers | PA6+30%GF |
| Cover | PA6+30%GF |
| Nut | Steel |
| Chuck | POM |
| Nut | Nickel Plating |
| Front- plug assembly | Gold Plating |
Article Variations
| Article Name | Details | Packaging |

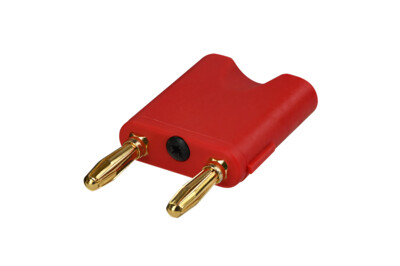

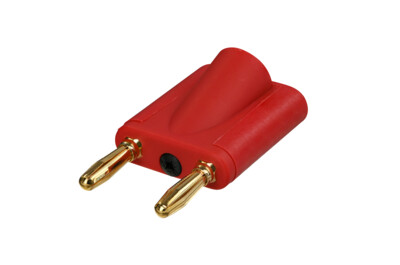

| NYS508-R | red | |

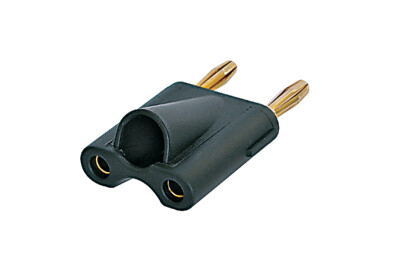

| NYS508-B | black |
