rean > Indoor > XLR Connectors > Tiny XLR > RA3FT-B

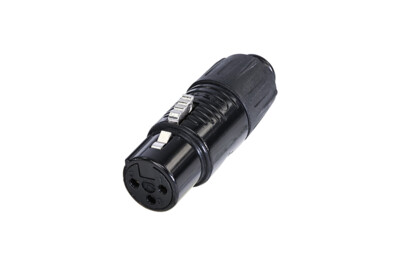

RA3FT-B

RA3FT-B

3 pole TINY xlr adapter, male to female

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing RA3FT-B
  • Drawing RA3FT-B
  • 3D File RA3FT-B

Article Variations

Article Name Details Packaging
RA3FT-B Black plated housing, gold plated contacts Plastic Bag





Technical Information

Product
Title RA3FT-B
Connection Type XLR
Electrical
Contact Resistance ≤5 mΩ
Insulation Resistance >1 GΩ
Dielectric Strength >500 V rms
Rated current per contact <5 A
Mechanical
Lifetime >1000 Mating Cycles
Wiresize 0.22 mm²
Wiresize 24 AWG
Material
Housing Zinc
Latch Zinc
Ground Contact Steel
Rubber Ring Rubber
Plastic housing PA6+30%GF
Jack Bronze
Shell PA6+30%GF
Pin Brass
Pin holder PA6+30%GF
Bushing PA6+30%GF
Housing Zinc
Housing Black Plating
Housing Black Plating
Latch Nickel Plating
Ground Contact Tin and Cer
Jack Gold Plating
Pin Gold Plating
