RC3FDL
3 pole female XLR receptacle with solder lugs
Downloads
Technical Information
| Product | |
|---|---|
| Title | RC3FDL |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Insulation Resistance | >1 GΩ |
| Contact Resistance | ≤5 mΩ |
| Rated Current | ≤10 A |
| Mechanical | |
|---|---|
| Lifetime | >1000 Mating Cycles |
| Insertion Force | ≤20N |
| Withdrawal Force | ≤20N |
| Material | |
|---|---|
| Ground Contact | Bronze |
| Jack | Bronze |
| Housing | Zinc |
| Latch | Steel |
| Spring | Steel |
| Plastic Body | PA6+30%GF |
| Ground Contact | Tin and Cer |
| Jack | Tin and Cer |
| Housing | Nickel Plating |
| Latch | Nickel Plating |
Article Variations
| Article Name | Details | Packaging |

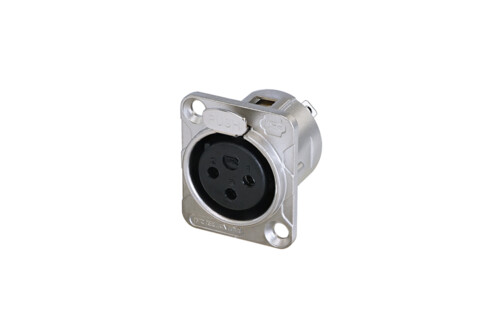

| RC3FDL | Nickel plated housing, tin plated contacts | |

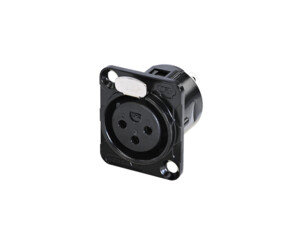

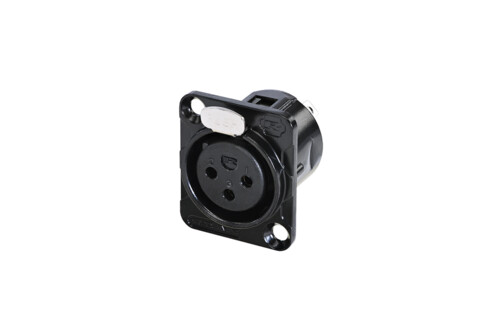

| RC3FDL-B | Black plated housing, gold plated contacts |
