RC3M RC3M-B RC3M-BAG
RC3M
RC3M-B
RC3M-BAG
1/3
rean / Indoor / XLR Connectors / Finger groove cable connectors / RC3M

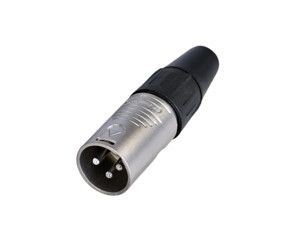

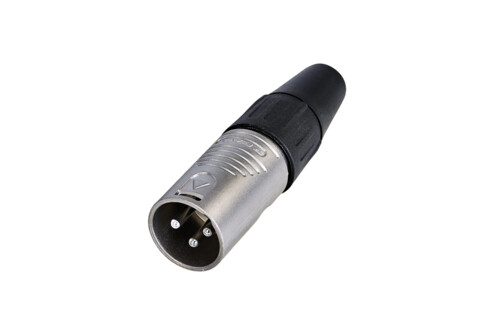

RC3M

Download Data Sheet

3 pole male XLR cable connector

Downloads
RC3M
pdf - 49.48 KB
RC3M
dxf - 2.36 MB
3D File RC3M
stp - 1.99 MB
Assembly Instruction-XLR male connector finger groove series
pdf - 4.3 MB

Technical Information

Product
Title RC3M
Connection Type XLR
Gender male
Electrical
Insulation Resistance > 1.5 GΩ
Contact Resistance ≤ 5 mΩ
Rated Current 10 A
Mechanical
Lifetime >1000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Pin Brass
Male Insert PA6+30%GF UL94-HB
Ground Contact Bronze
Housing Zinc
Chuck POM
Push Ring POM
Bushing PA6+30%GF
Boot PVC
Pin Sliver Plating
Ground Contact Tin and Cer
Housing Nickel Plating
Article Variations
Article Name Details Packaging
RC3M Nickel plated housing, Silver plated contacts Plastic bag
RC3M-D Nickel plated housing, Silver plated contacts BULK

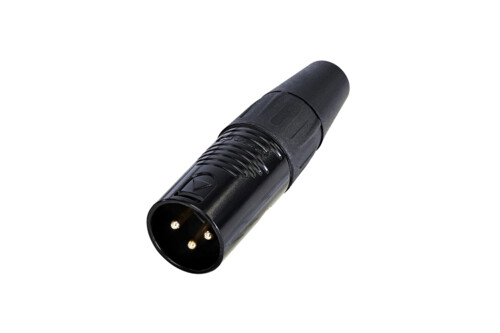

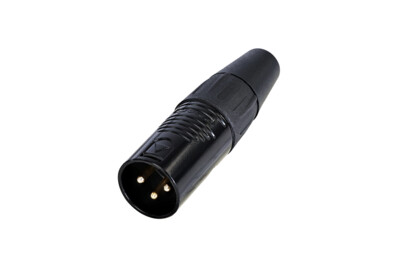

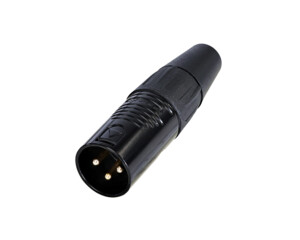

RC3M-B Black plated housing, gold plated contacts Plastic bag
RC3M-B-D Black plated housing, gold plated contacts BULK

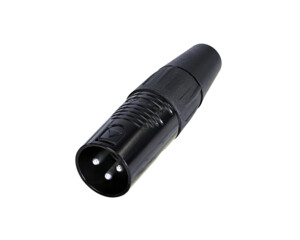

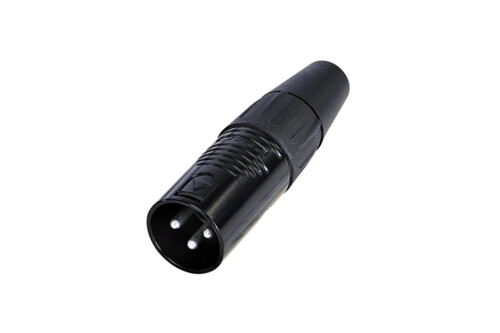

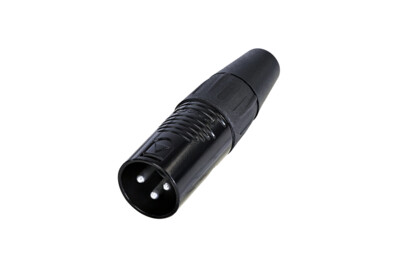

RC3M-BAG Black plated housing, Silver plated contacts Plastic bag
RC3M-BAG-D Black plated housing, Silver plated contacts BULK
