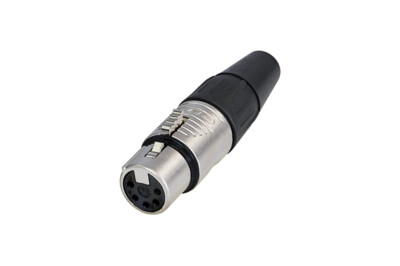

RC5F

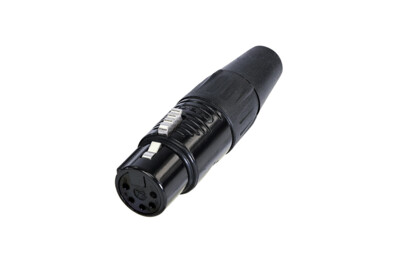

RC5F-B
RC5F-BAG
1/3
rean / Indoor / XLR Connectors / Finger groove cable connectors / RC5F

RC5F

Download Data Sheet

5 pole female XLR cable connector

Downloads
RC5F
pdf - 50.35 KB
RC5F
dxf - 2.38 MB
3D File RC5F
stp - 1.44 MB
Assembly Instruction-XLR female connector finger groove series
pdf - 5.27 MB

Technical Information

Product
Title RC5F
Connection Type XLR
Gender female
Electrical
Contact Resistance ≤ 5 mΩ
Insulation Resistance > 1.5 GΩ
Mechanical
Lifetime >1,000 Mating Cycles
Insertion Force ≤ 30 N
Withdrawal Force ≤ 20 N
Cable O.D. 4 - 7 mm
Wiresize 1.5 mm²
Wiresize 16 AWG
Material
Plastic Body PA6+30%GF
Jack Brass
Ground Contact Steel
Rubber Ring Rubber
Button Zinc
Housing Zinc
Chuck POM
Bushing PA6+30%GF
Push Ring POM
Boot PVC
Jack Sliver Plating
Ground Contact Tin and Cer
Button Nickel Plating
Housing Nickel Plating
Article Variations
Article Name Details Packaging
RC5F Nickel plated housing, Silver plated contacts Plastic bag
RC5F-D Nickel plated housing, Silver plated contacts BULK
RC5F-B Black plated housing, gold plated contacts Plastic bag
RC5F-B-D Black plated housing, gold plated contacts BULK
RC5F-BAG Black plated housing, Silver plated contacts Plastic bag
RC5F-BAG-D Black plated housing, Silver plated contacts BULK
