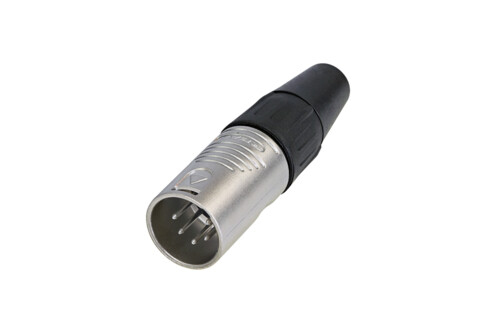

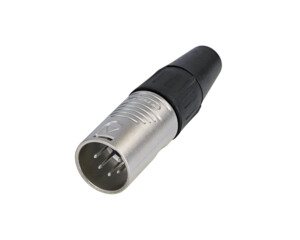

RC5M
5 pole male XLR cable connector
Downloads
Technical Information
| Product | |
|---|---|
| Title | RC5M |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Insulation Resistance | >1.5 GΩ |
| Contact Resistance | ≤ 5 mΩ |
| Rated Current | 10 A |
| Mechanical | |
|---|---|
| Lifetime | >1000 Mating Cycles |
| Insertion Force | ≤ 30 N |
| Withdrawal Force | ≤ 20 N |
| Cable O.D. | 4 - 7 mm |
| Wiresize | 1.5 mm² |
| Wiresize | 16 AWG |
| Material | |
|---|---|
| Housing | Zinc |
| Pin | Brass |
| Male Insert | PA6+30%GF |
| Ground Contact | Bronze |
| Chuck | POM |
| Bushing | PA6+30%GF |
| Push Ring | POM |
| Boot | PVC |
| Housing | Nickel Plating |
| Pin | Sliver Plating |
| Ground Contact | Tin and Cer |
Article Variations
| Article Name | Details | Packaging |
| RC5M | Nickel plated housing, Silver plated contacts | Plastic bag |
| RC5M-D | Nickel plated housing, Silver plated contacts | BULK |

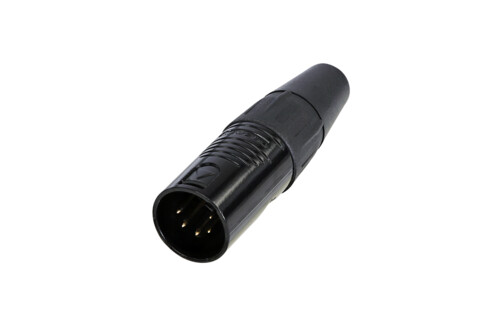

| RC5M-B | Black plated housing, gold plated contacts | Plastic bag |
| RC5M-B-D | Black plated housing, gold plated contacts | BULK |

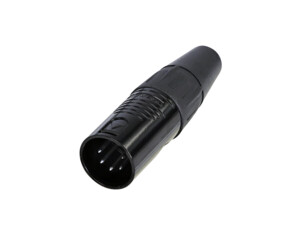

| RC5M-BAG | Black plated housing, Silver plated contacts | Plastic bag |
| RC5M-BAG-D | Black plated housing, Silver plated contacts | BULK |
