RC5MDL
5 pole male XLR receptacle with solder lugs
Downloads
Technical Information
| Product | |
|---|---|
| Title | RC5MDL |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Insulation Resistance | >1 GΩ |
| Contact Resistance | ≤5 mΩ |
| Rated Current | ≤10 A |
| Mechanical | |
|---|---|
| Lifetime | >1000 Mating Cycles |
| Insertion Force | ≤20N |
| Withdrawal Force | ≥20N |
| Material | |
|---|---|
| Housing | Zinc |
| Male Insert | PA6+30%GF |
| Pin | Brass |
| Ground Contact | Bronze |
| Housing | Nickel Plating |
| Pin | Tin and Cer |
| Ground Contact | Tin and Cer |
Article Variations
| Article Name | Details | Packaging |
| RC5MDL | Nickel plated housing, tin plated contacts | |

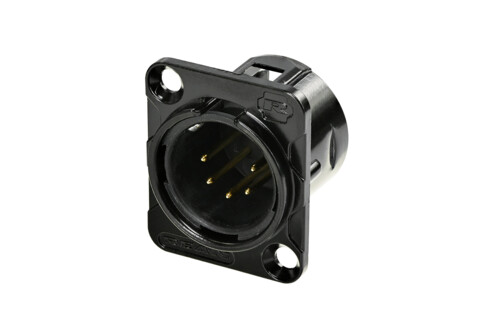

| RC5MDL-B | Black plated housing, gold plated contacts | |
| RC5MDL-G | Nickel plated housing, gold plated contacts | |
| RC5MDL-BAG | Black plated housing, silver plated contacts |
