RCX5M-Z
5 pole male XLR cable connector with IP65 protection
Downloads
Technical Information
| Product | |
|---|---|
| Title | RCX5M-Z |
| Connection Type | XLR |
| Gender | Male |
| Electrical | |
|---|---|
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 7.5 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 5.0 - 8.0 mm |
| Insertion force | ≤ 60 N |
| Withdrawal force | ≤ 60 N |
| Lifetime | > 1000 cycles |
| Wiresize | Max. 1.0 mm2 |
| Wiresize | Max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Bushing | Polyamide |
| Contact plating | Tin (-000 & - 001) / AU (-002) |
| Contacts | Brass |
| Insert | Polyamide (UL94-V0) |
| Locking element | Zinc diecast |
| Shell | Zinc diecast |
| Shell plating | Chrome (-000) / Black (-001 & -002) |
| Strain relief | Polyamide |
| Sealing jacket | Rubber |
Article Variations
| Article Name | Details | Packaging |

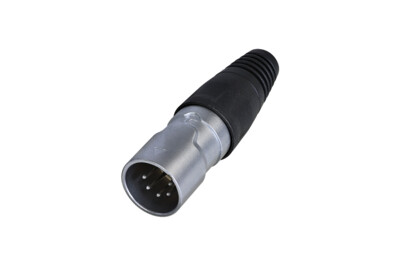

| RCX5M-Z-000-0/1 | Chrome plated housing and tin plated contacts | BULK / Plastic Bag |

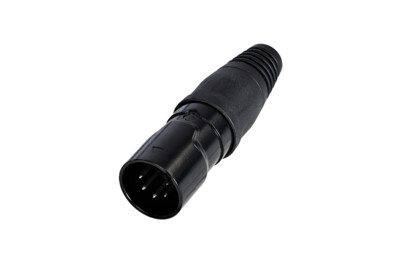

| RCX5M-Z-001-0/1 | Black plated housing and tin plated contacts | BULK / Plastic Bag |

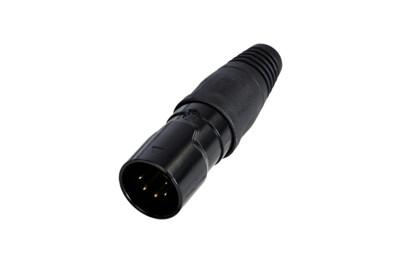

| RCX5M-Z-002-0/1 | Black plated housing and gold plated contacts | BULK / Plastic Bag |
