RF2C
RCA plug, gold plated contacts
Downloads
RF2C-AU-0(LINE)
pdf - 45.7 KB
RF2C-AU-0(LINE)
dxf - 2.25 MB
3D File RF2C
STP - 1.12 MB
RF2C-AU-0(LINE) (1)
pdf - 45.7 KB
RF2C-AU-0(LINE) (1)
dxf - 2.25 MB
RF2C-AU-2(LINE)
pdf - 45.71 KB
RF2C-AU-2(LINE)
dxf - 2.25 MB
RF2C-B-0(LINE)
pdf - 45.71 KB
RF2C-B-0(LINE)
dxf - 2.25 MB
RF2C-B-2(LINE)
pdf - 45.71 KB
RF2C-B-2(LINE)
dxf - 2.25 MB
RF2C-B-4(LINE)
pdf - 45.71 KB
RF2C-B-4(LINE)
dxf - 2.25 MB
Assembly Instruction-Phono Finger Groove Series
pdf - 3.42 MB
Technical Information
| Product | |
|---|---|
| Title | RF2C |
| Connection Type | Phono ("RCA/Cinch") |
| Electrical | |
|---|---|
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | ≥200 MΩ(Initial) |
| Dielectric Strength | 50Hz 0.5kv dc |
| Mechanical | |
|---|---|
| Insertion and Withdrawal Force | 5-40N |
| Lifetime | >5,000 Mating Cycles |
| Cable O.D. | 4 - 6 mm |
| Wiresize | 1.5 mm² |
| Wiresize | 16 AWG |
| Material | |
|---|---|
| Bush ring | ABS |
| Chuck | POM |
| Ground Contact | Bronze |
| Boot | PVC |
| Housing | Zinc |
| Housing | Brass |
| Pin Body | PA6+30%GF |
| Housing | Gold Plating |
| Ground Contact | Gold Plating |
| Housing | Nickel Plating |
Article Variations
| Article Name | Details | Packaging |

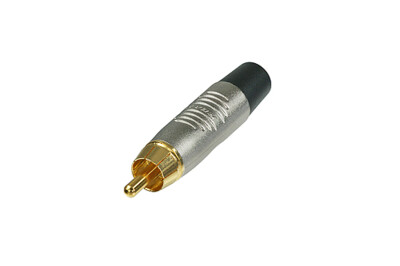

| RF2C-AU-0 | nickel shell, black boot | Plastic Packaging |
| RF2C-AU-0-D | nickel shell, black boot | BULK |

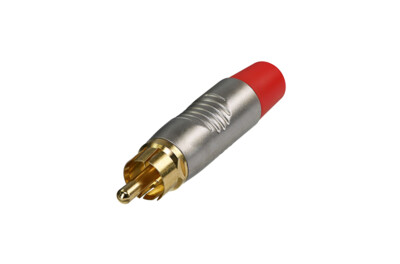

| RF2C-AU-2 | nickel shell, red boot | Plastic Packaging |
| RF2C-AU-2-D | nickel shell, red boot | BULK |

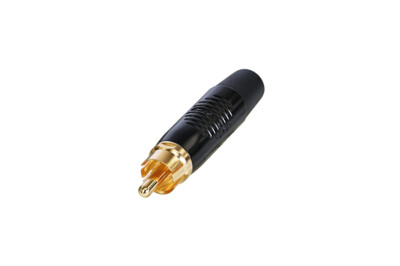

| RF2C-B-0 | black shell, black boot | Plastic Packaging |
| RF2C-B-0-D | black shell, black boot | BULK |

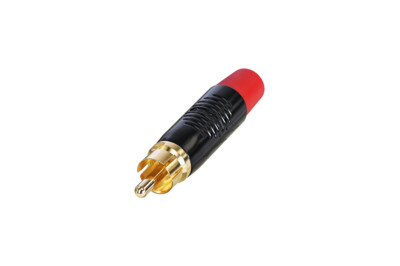

| RF2C-B-2 | black shell, red boot | Plastic Packaging |
| RF2C-B-2-D | black shell, red boot | BULK |

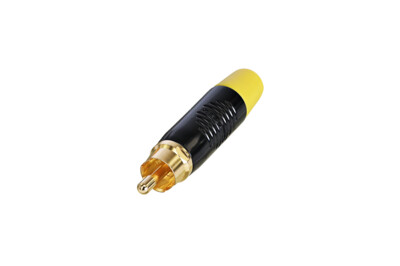

| RF2C-B-4 | black shell, yellow boot | Plastic Packaging |
| RF2C-B-4-D | black shell, yellow boot | BULK |
