RJ3VM
Stereo 1/4" jacks, metal nose
Downloads
Technical Information
| Product | |
|---|---|
| Title | RJ3VM |
| Connection Type | Jack |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | < 10 mΩ |
| Dielectric strength | 0.5 kVdc |
| Insulation resistance | ≥ 1 GΩ |
| Rated current per contact | 3 A |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≥ 10 N |
| Lifetime | ＞1000 mating cycles |
| Wiring | Solder contacts |
| Material | |
|---|---|
| Contacts | Bronze (CuSn6) |
| Shell | PA 6 30 % GR |
| Contact plating | Ag |
| Thread nose | ZnAl4Cu1 |
| Environmental | |
|---|---|
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -20 °C to +70 °C |
Article Variations
| Article Name | Details | Packaging |

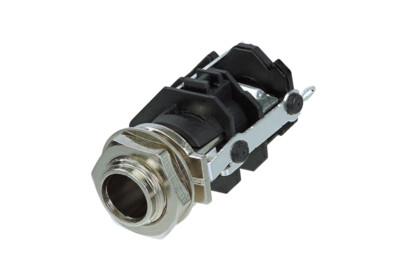

| RJ3VM | Vertical PCB contacts | BULK |

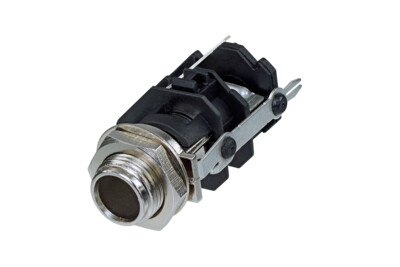

| RJ3VM-D1 | Vertical D1 PCB contacts | BULK |

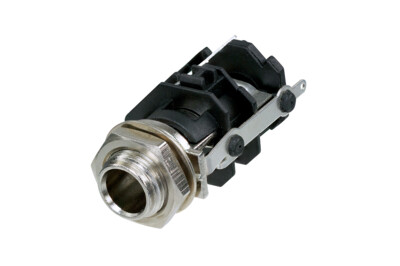

| RJ3VM-S | Solder lugs | BULK |
