RJ5VM

Download Data Sheet

Stereo 1/4" jacks with normalling contacts, metal nose

Downloads
rj5vm-1
pdf - 184.22 KB
rj5vm
stp - 2.34 MB
3D File RJ5VM
stp - 2.34 MB
rj5vm-d1-2
pdf - 168.85 KB
rj5vm-d1
stp - 2.32 MB
3D File RJ5VM-D1
stp - 2.32 MB
rj5vm-s-1
pdf - 169.8 KB
rj5vm-s
stp - 2.38 MB
3D File RJ5VM-S
stp - 2.38 MB
Assembly Instruction-6
pdf - 3.85 MB

Technical Information

Product
Title RJ5VM
Connection Type Jack
Gender female
Electrical
Contact resistance < 10 mΩ
Dielectric strength 0.5 kVdc
Insulation resistance ≥ 1 GΩ
Rated current per contact 3 A
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≥ 10 N
Lifetime 1000 mating cycles
Wiring Solder contacts
Material
Contacts Bronze (CuSn6)
Shell PA 6 30 % GR
Contact plating Ag
Thread nose ZnAl4Cu1
Environmental
Solderability Complies with IEC 68-2-20
Temperature range -20 °C to +70 °C
Article Variations
Article Name Details Packaging

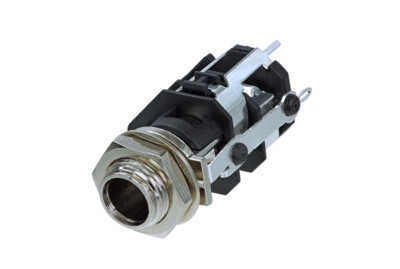

RJ5VM Vertical PCB contacts BULK

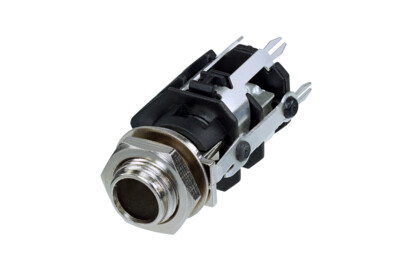

RJ5VM-D1 Vertical D1 PCB contacts BULK

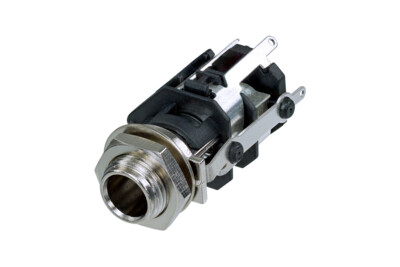

RJ5VM-S Solder lugs BULK
