RLS4MDZ
4 pole loudspeaker receptacle, D-Size front mounted, PCB Contacts
Downloads
Links
Technical Information
| Product | |
|---|---|
| Title | RLS4MDZ |
| Connection Type | Loudspeaker Connectors |
| Electrical | |
|---|---|
| Rated current | continuous 30 A rms |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | > 1 GΩ |
| Dielectric strength | 4 kV dc |
| Rated Voltage | 250 V |
| Mechanical | |
|---|---|
| Lifetime | > 1000 mating cycles |
| Chassis shape | D |
| Wiring | flat tab ( 4.8 × 0.5 mm ) or soldering |
| Mounting direction | Front mounting or rear mounting |
| Material | |
|---|---|
| Contact | Bronze |
| Contact plating | Ag |
| Shell | PA6+30%GF |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability | UL94 V-0 |
| Solderability | complies with IEC68-2-20 |
Article Variations
| Article Name | Details | Packaging |

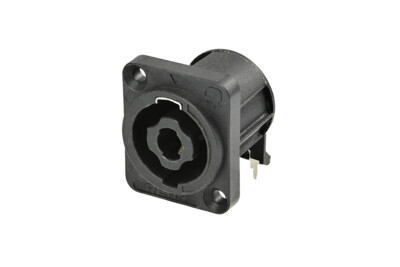

| RLS4MDZ-H | PCB contacts, Horizontal | BULK |

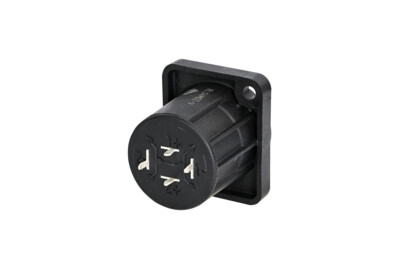

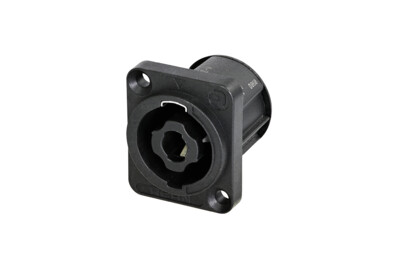

| RLS4MDZ-V | PCB contacts, Vertical | BULK |
