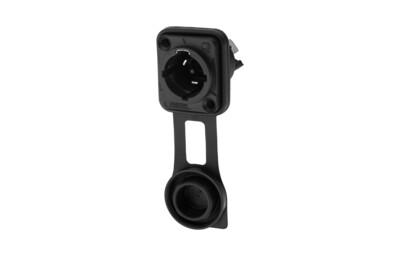

RRAC3M-X-000 with-RA001

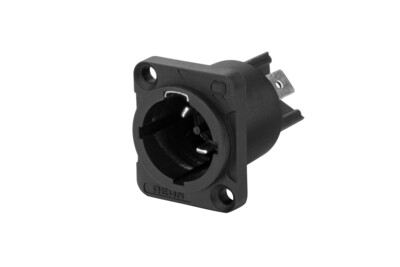

RRAC3M-X-000
with-RA001
1/2
rean / Outdoor / Power Connectors / X Series / Power connectors / RRAC3M-X-000

RRAC3M-X-000

Download Data Sheet

Lockable power inlet chassis connector, with excellent flammability class by using V0 materials.

Designed for outdoor applications, IP65 protection, weather resistant.

The power X series are connectors with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Downloads
Drawing RRAC3M-X-000
pdf - 82.02 KB
Drawing RRAC3M-X-000
dxf - 1.82 MB
3D File RRAC3M-X-000
stp - 3.56 MB
Assembly Instruction - RRAC3M-X-000
pdf - 1.69 MB
CB Certificate RRAC3M-X-000
pdf - 99.21 KB
VDE Certificate RRAC3M-X-000
pdf - 336.32 KB
Links
UL Certificate cUL Certificate

Technical Information

Product
Title RRAC3M-X-000
Connection Type Power
Electrical
Number of contacts 2 + PE
Rating Europe EN 60320-1: 16 A 250 V AC
Rating USA UL 60320-1: 20 A 250 V AC
Dielectric strength 4 kV dc / 2.8 kV ac
Contact resistance ≤ 2 mΩ
Insulation resistance (after dampheat) > 1 GΩ
Mechanical
Retention method Twist lock
Lifetime > 5000 mating cycles
Wiring Flat tabs 6.35 x 0.8 mm
Material
Shell Polyamide
Contacts Copper alloy
Contact plating Ag
Locking element Stainless steel
Environmental
Temperature range -30 °C to +80 °C
Flammability UL94 V-0
Accessories
RA-X-001

​The rubber sealing cover for the power X sereis chassis connector RRAC3F-X-000
Article Variations
Article Name Details Packaging
RRAC3M-X-000-0 Power inlet BULK
RRAC3M-X-000-1 Power inlet Plastic bag
