RRAC3O-G

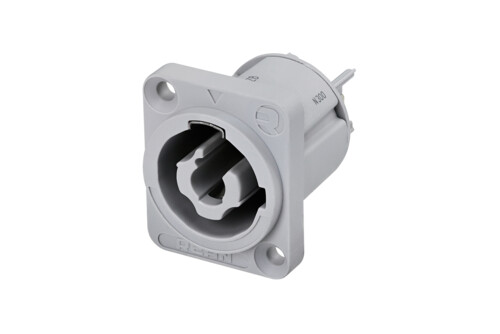

3 pole AC power outlet receptacle with D-Size mounting flange which can be mounted from the front and the rear
Downloads
st-rrac3o-g-000
pdf - 133.69 KB
st-rrac3o-g-000
dxf - 1.15 MB
rrac3o-g-000
stp - 3.36 MB
Assembly Instruction-Power G series plug & chassis
pdf - 1014.05 KB
CB Certificate RRAC3O-G
pdf - 96.95 KB
VDE Certificate RRAC3O-G
pdf - 339.33 KB
Certificate_ETL_104219889CRT-001 (2026-01-13)
pdf - 137.18 KB
Certificate_ETL_104331910ATL-001A (2024-06-10)
pdf - 83.36 KB
Links
Technical Information
| Product | |
|---|---|
| Title | RRAC3O-G |
| Connection Type | Power Connectors |
| Electrical | |
|---|---|
| Number of contacts | 2 + PE |
| Rated current per contact | 16 A / 20 A RMS |
| Rated Voltage | 250 V / 127 V AC |
| Dielectric strength (peak) | 4 kV ac |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance (after dampheat, IEC 68-2-30) | > 1 GΩ |
| Mechanical | |
|---|---|
| Retention method | Twist lock |
| Cable O.D. range | 6 -15 mm |
| Wiring Cable | Screw type terminals, wire size 2.5 mm² / 12 AWG |
| Wiring Receptacle | Flat tabs for FASTON® (4.8 x 0.5 mm) or soldering |
| Material | |
|---|---|
| Cable connector contacts | Brass, Ag plated |
| Receptacle contacts | Bronze, Ag plated |
| Chucks | POM |
| Environmental | |
|---|---|
| Flammability | UL94 V-0 |
| Temperature range | -30 °C to +80 °C |
| Protection class (mated) | IP 20 |
| Safety Requirments | EN / IEC61984 |
| Solderability | complies with IEC68-2-20 |
Article Variations
| Article Name | Details | Packaging |
| RRAC3O-G-000-0 | 3/16" flat tap contacts, grey housing, power outlet | BULK |
