RRXJ10F-A-000

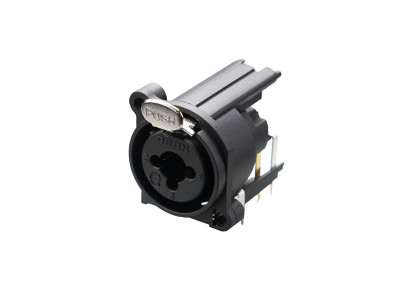

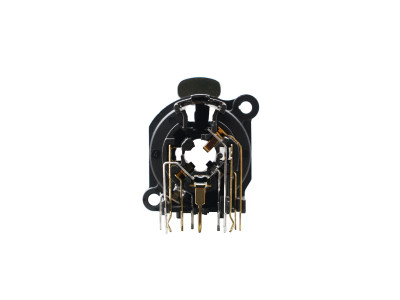

Flat head version of the existing Combo A, horizontal version, with latch, 10 pin
Features & Benefits
- Flat front design with metal latch lock, stylish and streamlined look
- Equipped with gold-plated contacts, offering excellent conductivity and wear resistance
- Made from UL94 V0 material to ensure flame retardancy
- Vertical design with 24 mm PCB spacing, optimised for use in tight spaces
Downloads
Technical information
| Product | |
|---|---|
| Title | RRXJ10F-A-000 |
| Connection Type | XLR/Jacks Combo |
| Electrical | |
|---|---|
| Contact resistance - XLR | ≤10 mΩ |
| Contact resistance - 1/4" Jack | ≤ 20 mΩ |
| Insulation Resistance | >10 GΩ(Initial) |
| Rated current per contact | 3 A |
| Rated Voltage | 50 VAC |
| Dielectric strength | 1.5 KVdc |
| Mechanical | |
|---|---|
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1'000 mating cycles |
| Panel thickness | 1mm (0.04 ") - 3mm (0.12") |
| Wiring | PCB mount |
| Locking device | Latch lock |
| Mounting direction | Front mount |
| Mounting screw | A-screw-1-8 |
| Material | |
|---|---|
| Housing | PA |
| Contacts | CuSn6 |
| Contact plating | Au / Ag ( TN, RN, SN) |
| Ground Contact plating | Tin (G,GN) |
| Locking latch / Button | CK 65Mn steel |
| Button plating | Nickel |
| Environmental | |
|---|---|
| Flammability | UL94 V-0 |
| Solderability | IEC 60068-2-20 |
| Temperature range | -30 °C ~ +80 °C |
