rean > Indoor > XLR Connectors > Tiny XLR > RT3MP

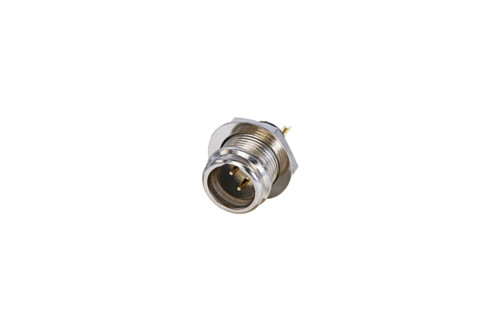

RT3MP

RT3MP

3 pole male TINY xlr receptacle

Download Data Sheet

Article Variations

Article Name Details Packaging
RT3MP Nickel plated housing, gold plated contacts, max. panel thickness: 6 mm Plastic Bag
RT3MP-D Nickel plated housing, gold plated contacts, max. panel thickness: 6 mm BULK

Technical Information

Product
Title RT3MP
Connection Type XLR
Electrical
Contact Resistance ≤10 mΩ
Insulation Resistance >1 GΩ
Dielectric Strength >500 V rms
Mechanical
Lifetime >1000 Mating Cycles
Material
Housing Zinc
Washer Steel
Nut Brass
Plastic Body PA66+30%GF
Pin Brass
Housing Nickel Plating
Washer Nickel Plating
Nut Nickel Plating
Pin Gold Plating
