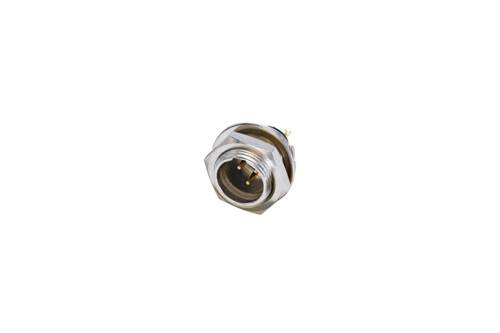

RT3MPR
3 pole male TINY xlr receptacle, rear mountable
Downloads
Technical Information
| Product | |
|---|---|
| Title | RT3MPR |
| Connection Type | XLR |
| Electrical | |
|---|---|
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >1 GΩ |
| Dielectric Strength | >500 V rms |
| Rated current per contact | ＜5 A |
| Mechanical | |
|---|---|
| Lifetime | >1000 Mating Cycles |
| Wiresize | 0.22 mm² |
| Wiresize | 24 AWG |
| Material | |
|---|---|
| Housing | Zinc |
| Nut | Brass |
| Washer | Steel |
| Plastic Body | PA66+30%GF |
| Pin | Brass |
| Housing | Nickel Plating |
| Nut | Nickel Plating |
| Washer | Nickel Plating |
| Pin | Gold Plating |
Article Variations
| Article Name | Details | Packaging |
| RT3MPR | Nickel plated housing, gold plated contacts, max. panel thickness: 3 mm | Plastic Bag |
| RT3MPR-D | Nickel plated housing, gold plated contacts, max. panel thickness: 3 mm | BULK |
