RT4FC-B

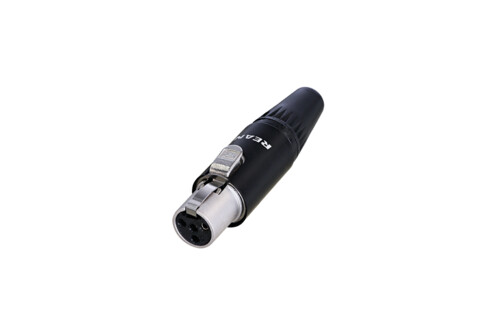

4 pole female TINY xlr cable connector
Downloads
RT4FC-B (1)
pdf - 51.53 KB
RT4FC-B (1)
dxf - 3.65 MB
3D File RT4FC-B
stp - 2.11 MB
RT4FC-B-D
pdf - 51.53 KB
RT4FC-B-D
dxf - 3.65 MB

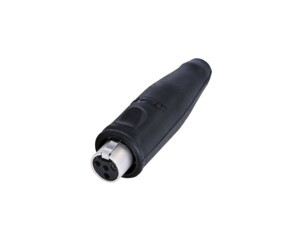

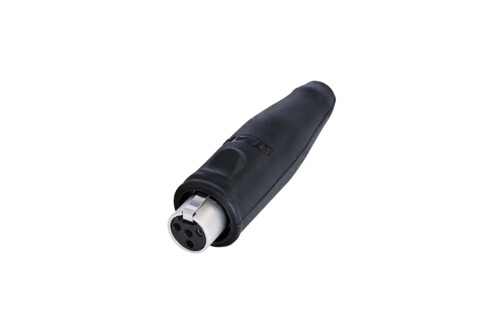

RT4FC-B-W
pdf - 51 KB
RT4FC-B-W
dxf - 5.44 MB
3D File RT4FC-B-W
STP - 339.4 KB
RT4FC-B-W-D
pdf - 51.01 KB
RT4FC-B-W-D
dxf - 5.44 MB
Assembly Instruction-Tiny XLR Cable Connector
pdf - 6.56 MB
Assembly+Instruction+-+TINY+xlr+female+cable+connector
pdf - 5.7 MB
Technical Information
| Product | |
|---|---|
| Title | RT4FC-B |
| Connection Type | XLR |
| Electrical | |
|---|---|
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >1 GΩ |
| Dielectric Strength | >500 V rms |
| Rated current per contact | ＜5 A |
| Mechanical | |
|---|---|
| Cable O.D. Range | 2.0-4.5mm |
| Lifetime | >1000 Mating Cycles |
| Wiresize | 0.22 mm² |
| Wiresize | 24 AWG |
| Material | |
|---|---|
| Ground Contact | Steel |
| Rubber Spring | Rubber |
| Latch | Zinc |
| Chuck | POM |
| Boot | PC/ABS+TPU |
| Housing | Zinc |
| Plastic housing | PA6+30%GF |
| Jack | Bronze |
| Ground Contact | Bronze |
| Tube | Aluminum |
| Latch | Nickel Plating |
| Housing | Nickel Plating |
| Jack | Gold Plating |
| Ground Contact | Tin |
| Tube | Black Plating |
Article Variations
| Article Name | Details | Packaging |
| RT4FC-B | Black plated housing, gold plated contacts | Plastic Bag |
| RT4FC-B-D | Black plated housing, gold plated contacts | BULK |
| RT4FC-B-W | Black plated housing, gold plated contacts, water resistant boot | Plastic Bag |
| RT4FC-B-W-D | Black plated housing, gold plated contacts, water resistant boot | BULK |
