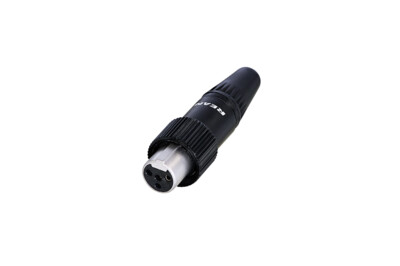

RT4FCT-B
4 pole female TINY xlr cable connector, screw locking
Downloads
Technical Information
| Product | |
|---|---|
| Title | RT4FCT-B |
| Connection Type | XLR |
| Electrical | |
|---|---|
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >1 GΩ |
| Dielectric Strength | >500 V rms |
| Rated current per contact | ＜5 A |
| Mechanical | |
|---|---|
| Cable O.D. Range | 2.0-4.5mm |
| Lifetime | >1000 Mating Cycles |
| Wiresize | 0.22 mm² |
| Wiresize | 24 AWG |
| Material | |
|---|---|
| Housing | Zinc |
| Nut | Aluminum |
| Tube | Aluminum |
| Jack | Bronze |
| Plastic housing | PA6+30%GF |
| Rubber Ring | Rubber |
| Locking Spring | Steel |
| Ground Contact | Bronze |
| Chuck | POM |
| Boot | PC/ABS+TPU |
| Housing | Nickel Plating |
| Jack | Gold Plating |
| Ground Contact | Tin |
| Nut | Black Plating |
| Tube | Black Plating |
Article Variations
| Article Name | Details | Packaging |
| RT4FCT-B | Black plated housing, gold plated contacts | Plastic Bag |
| RT4FCT-B-D | Black plated housing, gold plated contacts | BULK |
