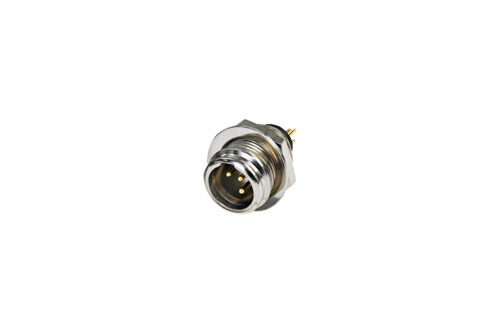

RT4MP

RT4MP

4 pole male TINY xlr receptacle

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing RT4MP
  • Drawing RT4MP
  • 3D File RT4MP
  • Drawing RT4MP-D
  • Drawing RT4MP-D
  • Assembly Instruction-Tiny XLR_Front mount Chassis

Article Variations

Article Name Details Packaging
RT4MP Nickel plated housing, gold plated contacts, max. panel thickness: 6 mm Plastic Bag
RT4MP-D Nickel plated housing, gold plated contacts, max. panel thickness: 6 mm BULK

Technical Information

Product
Title RT4MP
Connection Type XLR
Electrical
Contact Resistance ≤10 mΩ
Insulation Resistance >1 GΩ
Dielectric Strength >500 V rms
Rated current per contact <5 A
Mechanical
Lifetime >1000 Mating Cycles
Wiresize 0.22 mm²
Wiresize 24 AWG
Material
Housing Zinc
Washer Steel
Nut Brass
Plastic Body PA66+30%GF
Pin Brass
Housing Nickel Plating
Washer Nickel Plating
Nut Nickel Plating
Pin Gold Plating
