rean > Indoor > XLR Connectors > Tiny XLR > RT5FC-B
RT5FC-B
RT5FC-B-W
RT5FC-B
RT5FC-B-W

RT5FC-B

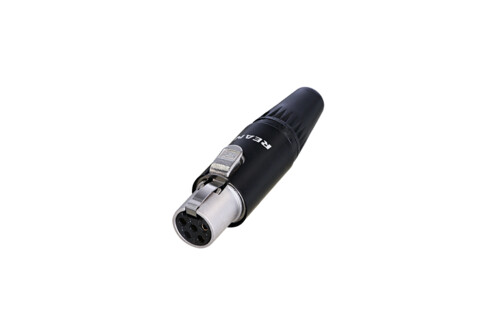

5 pole female TINY xlr cable connector

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Drawing RT5FC-B
  • Drawing RT5FC-B
  • 3D File RT5FC-B
  • Drawing RT5FC-B-D
  • Drawing RT5FC-B-D
  • Drawing RT5FC-B-W
  • Drawing RT5FC-B-W
  • 3D File RT5FC-B-W
  • Drawing RT5FC-B-W-D
  • Drawing RT5FC-B-W-D
  • Assembly Instruction-Tiny XLR Cable Connector
  • Assembly+Instruction+-+TINY+xlr+female+cable+connector

Article Variations

Article Name Details Packaging
RT5FC-B Black plated housing, gold plated contacts Plastic Bag
RT5FC-B-D Black plated housing, gold plated contacts BULK

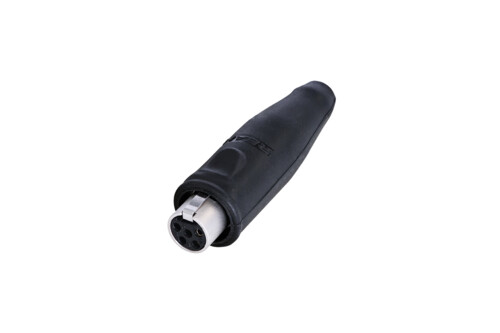

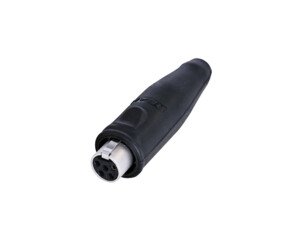

RT5FC-B-W Black plated housing, gold plated contacts, water resistant boot Plastic Bag
RT5FC-B-W-D Black plated housing, gold plated contacts, water resistant boot BULK

Technical Information

Product
Title RT5FC-B
Connection Type XLR
Electrical
Contact Resistance ≤10 mΩ
Insulation Resistance >1 GΩ
Dielectric Strength >500 V rms
Rated current per contact <5 A
Mechanical
Cable O.D. Range 2.0-4.5mm
Lifetime >1000 Mating Cycles
Wiresize 0.22 mm²
Wiresize 24 AWG
Material
Ground Contact Steel
Rubber Spring Rubber
Latch Zinc
Chuck POM
Boot PC/ABS+TPU
Housing Zinc
Plastic housing PA6+30%GF
Jack Bronze
Ground Contact Bronze
Tube Aluminum
Latch Nickel Plating
Housing Nickel Plating
Jack Gold Plating
Ground Contact Tin and Cer
Tube Black Plating
