RTP2C
Mono 2 pole
Downloads
RTP2C (LINE)
pdf - 41.35 KB
RTP2C (LINE)
dxf - 2.18 MB
3D File RTP2C
stp - 547.06 KB
RTP2C-D(LINE)
pdf - 41.47 KB
RTP2C-D(LINE)
dxf - 2.18 MB
RTP2C-B (LINE)
pdf - 41.47 KB
RTP2C-B (LINE)
dxf - 2.18 MB
RTP2C-B-D (LINE)
pdf - 41.63 KB
RTP2C-BAG(LINE)
pdf - 41.63 KB
RTP2C-BAG(LINE)
dxf - 2.18 MB
RTP2C-BAG-D(LINE)
pdf - 41.65 KB
RTP2C-BAG-D(LINE)
dxf - 2.18 MB
Assembly Instruction-3
pdf - 2.53 MB
Technical Information
| Product | |
|---|---|
| Title | RTP2C |
| Connection Type | Plug |
| Electrical | |
|---|---|
| Contact Resistance | ≤10 mΩ |
| Insulation Resistance | >200 MΩ(Initial) |
| Dielectric Strength | 500V dc 50HZ |
| Mechanical | |
|---|---|
| Insertion and Withdrawal Force | ≤60 N |
| Lifetime | >1,000 Mating Cycles |
| Cable O.D. | 2 - 4 mm |
| Wiresize | 0.24 mm² |
| Wiresize | 24 AWG |
| Material | |
|---|---|
| Sleeve Assembly | Brass |
| Sleeve | Brass |
| Housing | Zinc |
| Sleeve Assembly | Nickel Plating |
| Sleeve | Nickel Plating |
| Housing | Nickel Plating |
Article Variations
| Article Name | Details | Packaging |

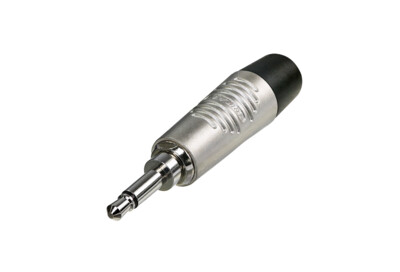

| RTP2C | nickel shell, nickel plated contacts | Plastic Packaging |
| RTP2C-D | nickel shell, nickel plated contacts | BULK |

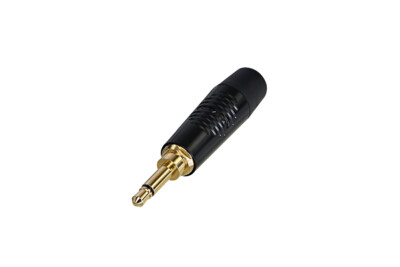

| RTP2C-B | black shell, gold plated contacts | Plastic Packaging |
| RTP2C-B-D | black shell, gold plated contacts | BULK |
| RTP2C-BAG | black shell, nickel plated contacts | Plastic Packaging |
| RTP2C-BAG-D | black shell, nickel plated contacts | BULK |
